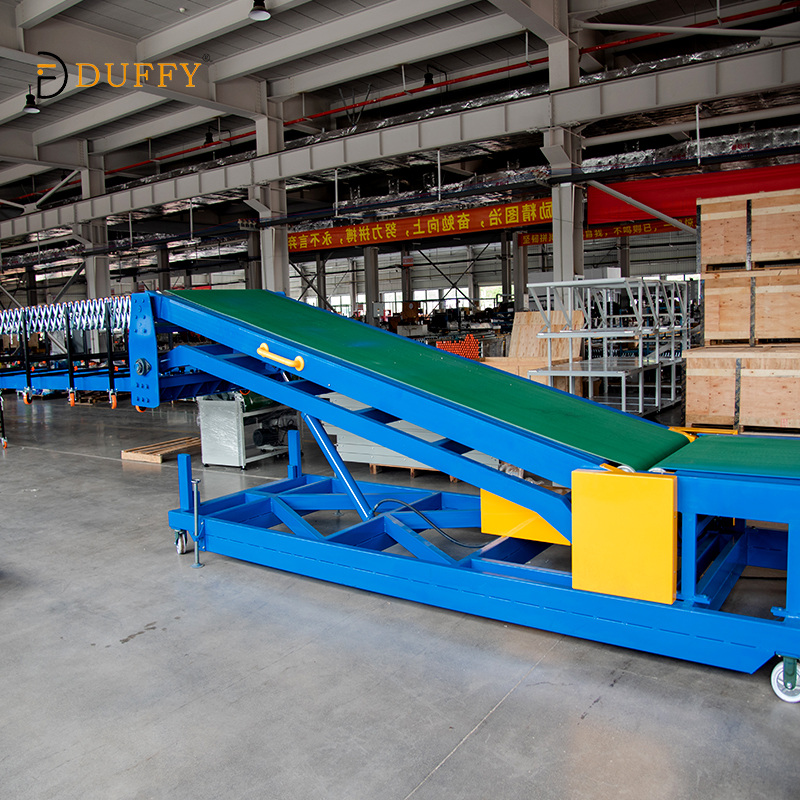

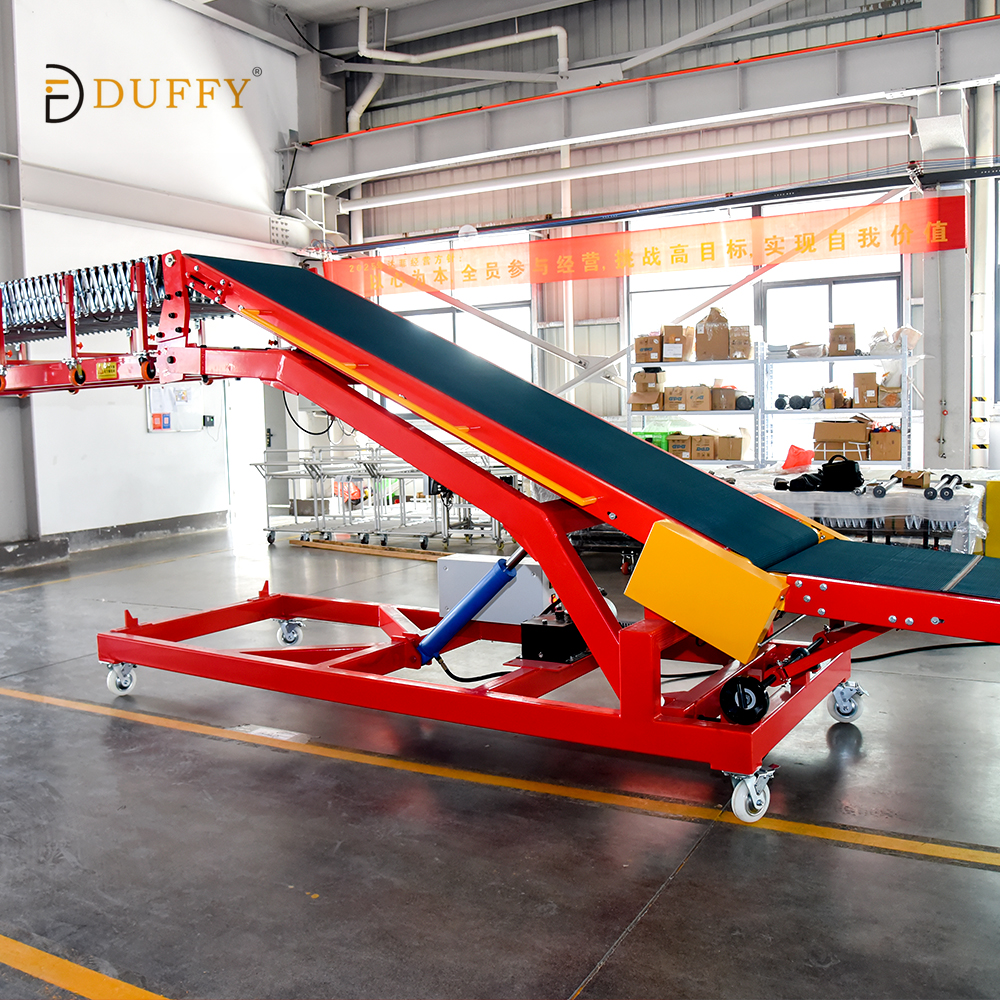

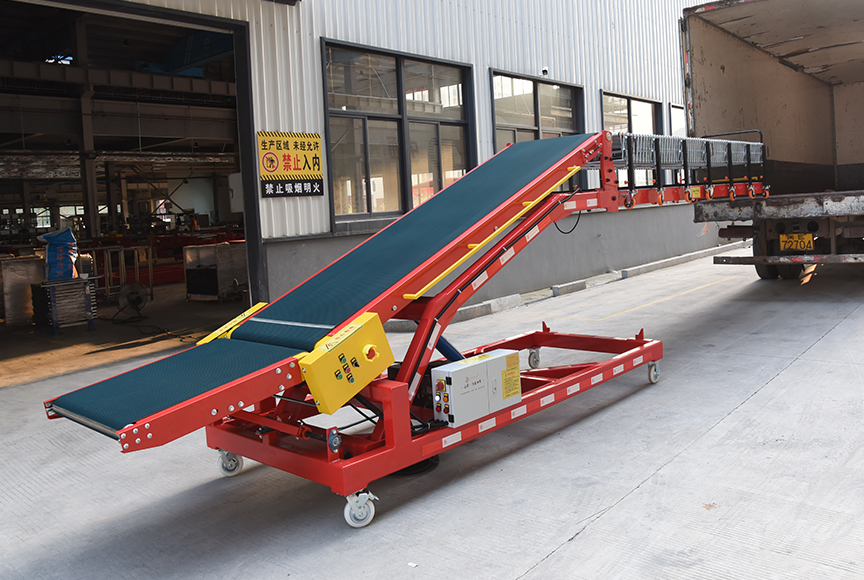

Duffy inclined conveyor provides safe, efficient vertical material transportation across different height platforms in production facilities and warehouses.
Replacing manual labor and forklift handling with the inclined conveyor, Duffy significantly optimizes industrial and logistics operational efficiencies and cuts ongoing costs.
The inclined conveyor is driven by high-friction belt, ensuring a stable, slip-free elevation and supporting operation both uphill and downhill. With a load capacity of 50kg per meter and fully customizable dimensions such as width, length and inclination angle, this conveyor is easily adaptable to confined spaces, multi-story production lines and various industrial settings.
Due to its modular construction, the conveyor can be customized extensively to comprehensively blend into your existing production system. Safety provisions, including anti-slip belts, protective guardrails and emergency stop switches, ensure stable and secure operation at all times.
Placed between floors production linkage, dock-to-warehouse material handling, and food & beverage processing lines, Duffy inclined conveyor serves as an effective space-connector with a knock-on effect on productivity increase, labor cost reduction, and superior long-term ROI.
Product Specifications Table
| Category | Parameter | Unit | Standard Version Specs |
| Basic Attributes | Total Weight | kg | 820/950 |
| Frame Color | - | Industrial-grade paint (Standard RAL3020 Red) | |
| Main Body Material | - | Carbon Steel (frame + body plates) | |
| Belt Running Direction | - | Reversible | |
| Rated Supply Voltage | V | 220/380 | |
| Installation & Mobility | - | Mobile (2 swivel casters with brakes + 2 fixed casters) | |
| Belt Core Parameters | Conveyor Belt Material & Thickness | - | 5mm Green Incline Conveyor Belt |
| Belt Width | mm | 600/800 (optional) | |
| Steel Plate Size Under Belt | mm | 905 | |
| Total Machine Width (incl. belt & frame) | mm | 1120/1320 | |
| Belt Conveying Speed | m/min | 15–40 (with Shihlin or equivalent brand inverter) | |
| Structural Dimensions | Platform Length (L1) | mm | 990 |
| Incline Section Length (L2) | mm | 3050 | |
| Load Roller Fork Arm Length (L3) | mm | 3600 (designed for load, detachable) | |
| Machine Length Without Fork Arms | mm | 4170 | |
| Tail End Height (H) | mm | 970 (adjustable 700–1000) | |
| Fork Arm Bottom Ground Clearance | mm | 1700 | |
| Belt Conveying Surface Height | mm | 2300 | |
| Structural Strength | Base Frame Rectangular Tube Specs | mm | 80*120, thickness 3.75 |
| Rotation Arm Rectangular Tube Specs | mm | 80*120, thickness 3.75 | |
| Fork Arm Rectangular Tube Specs | mm | 60*120, thickness 2.75 | |
| Body Plate Thickness | mm | 2.0 (laser cut + CNC bent) | |

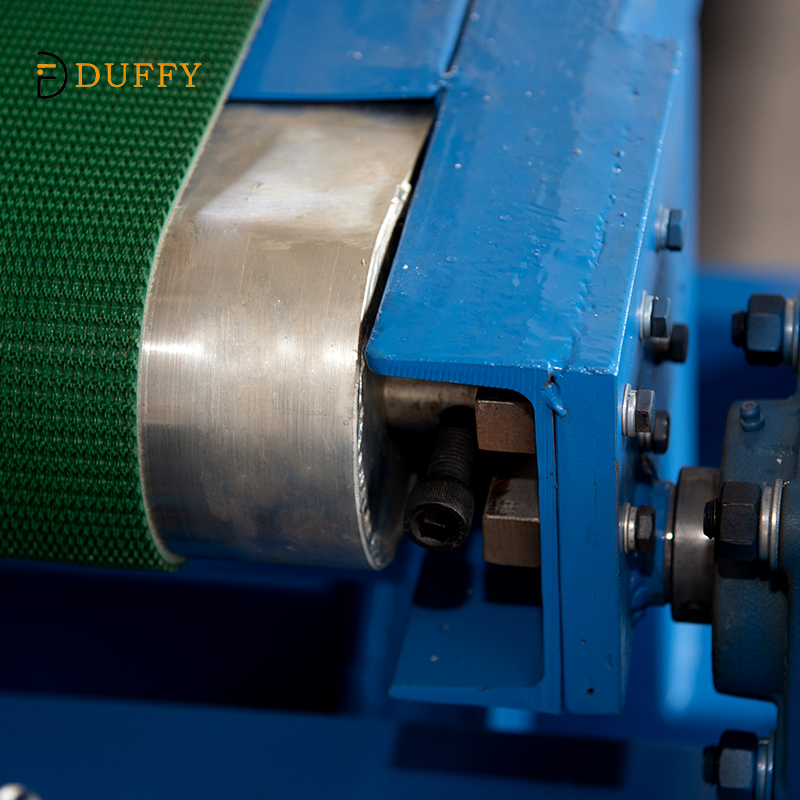

| Drive Roller Diameter | mm | 89 (precision CNC machined) | |
| Idler Roller Diameter | mm | 76 (precision CNC machined) | |
| Load & Power | Rated Load (belt conveying surface) | kg/㎡ | 50 |
| L3 Fork Arm Load | - | 6m/8m/10m Poly-V Belt | |
| Motor Drive (Brand/Power) | - | 1.5KW geared motor | |
| Hydraulic Power Unit Power | KW | 1.5 | |
| Main Electrical Component Brands | - | Chint, Delixi, etc. (domestic first-tier) | |
| Packaging | Packaging Material | - | PE stretch film |
| Whole Machine Warranty | months | 12 |
Factory Introduction
Optimize your warehouse and distribution efficiency with tailored intelligent logistics solutions from Duffy Machinery, a leading material handling specialist based in Fujian, China.Since our establishment in 2007, we have spent more than 10 years refining intelligent operational systems, with our core team offering 14 years of professional manufacturing experience for each customized project.
With a 35,000㎡ factory and 100+ skilled staff, Our factory is capable of producing 73,000 meters of roller conveyor lines and 2,000 incline conveyors annually; with a total of seven complete production lines, we ensure stable production and on-time delivery. We have obtained over 40 professional certifications and patents, including ISO9001, CE, EACC and national high-tech enterprise certification, which fully demonstrate our quality strength. Our solutions are widely recognized by global customers in the Middle East, South America, North America, Southeast Asia and other regions, supported by comprehensive after-sales service to ensure stable and efficient operation.
Factory Certificate
The Duffy inclined conveyor is a strategic solution for moving materials safely and efficiently across different floor levels.
Manual labor and forklift cycles can now be replaced with automated vertical flow, thus minimizing operational costs and risks. At the core of our systems is the high-friction belt drive that ensures transport stability in almost every situation - uphill or downhill - the loads can go up to 50kg per meter. We are well capable of customizing our conveyors to accommodate even the most elaborate settings of multi-story warehouses as we fully consider the uniqueness of every warehouse.
Our User Case
One example is the case of the big fire door manufacturer located in Zhejiang where we provided support when the handling of heavy steel sheets and fire-resistant fillers hampered their production process due to manual handling. We installed a custom vertical reciprocating conveyor that connected the cutting, assembly, and inspection departments leading to a 30% increase in heavy material transport efficiency and 80% reduction of material-related downtime. This "zero waiting" workflow enabled them to elevate their capacity without undergoing the typical growing pains of heavy-duty manufacturing.
Whether it is a small telescopic roller or a large multi-floor system that meets your requirements, our seven automated production lines guarantee on-time delivery every time. Currently supporting partners across North America, Southeast Asia, and the Middle East, Duffy Machinery is capable of keeping your business moving upward wherever you are.
Customer concerns (FAQ)
1.What’s the max load for single roller and full track?
Standard: 100kg/㎡; Heavy-duty (1.5mm wall): 150kg/㎡. All rollers pass 72-hour full-load test. Please share your product weight for tailored advice.
2.Can width/length be customized? How about packaging for assembly?
Customizable (width 300–1500mm, modular length). Delivered as full assembly kits; 2 workers can finish assembly in hours without welding.
3.What affects pricing? Any bulk discounts?
Pricing depends on material, load capacity, dimensions and accessories. 5–15% discount for orders over 100 meters. Free layout design is available.
4.What’s the MOQ for conveyors?
1Set.
5.What shipping methods do you offer?
Sea (FCL/LCL), cross-border land transport and air freight (for urgent parts/small components).
6.How is the equipment packaged for international shipping?
Inner: PE stretch film; Middle: metal/wood support stands; Outer: ISPM-15 fumigation-free wooden crates.
7.What payment methods are accepted?
Telegraphic Transfer (T/T) and UnionPay.
