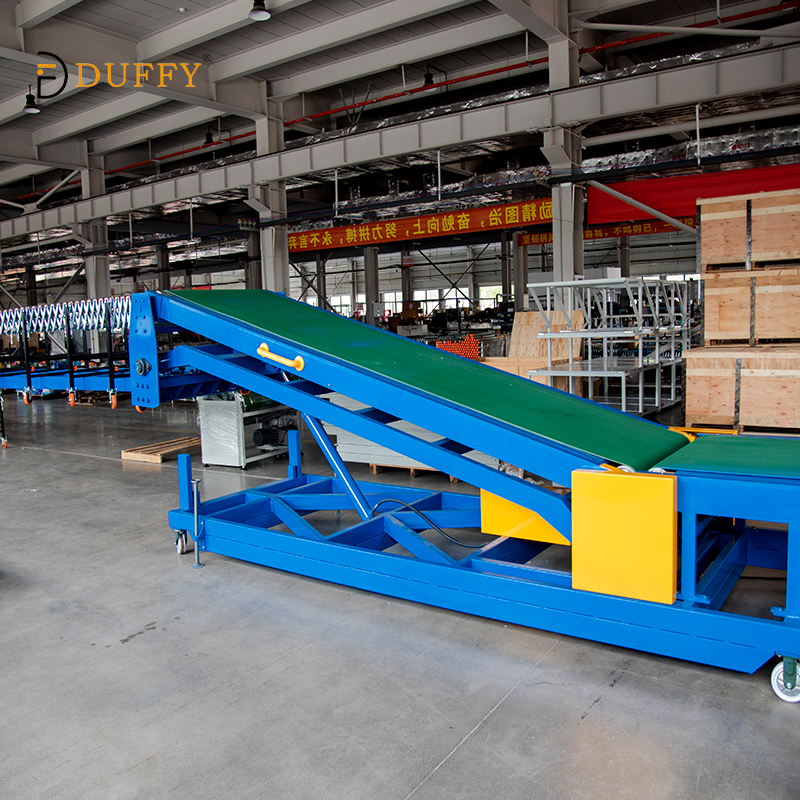

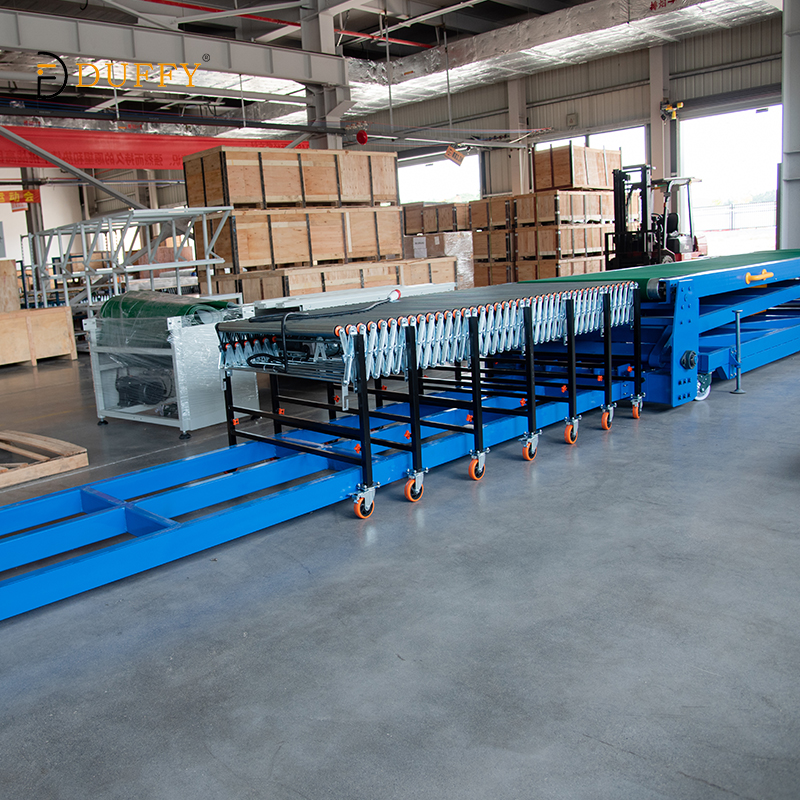

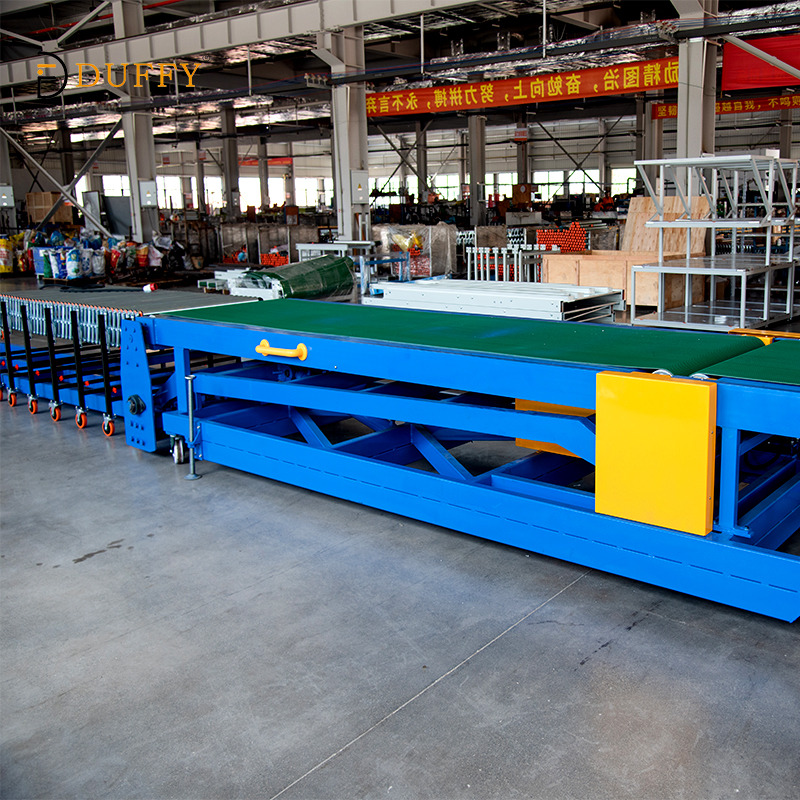

Duffy inclined conveyors are an effective and safe solution for vertically transporting materials between different floor levels in production and warehouse areas.
They replace manual handling and forklift use, and thus they provide a significant enhancement in the efficiency of operations as well as reducing the cost of running workloads.
They use a belt with high friction which is capable of keeping the materials stably and non-slipping when being conveyed either uphill or downhill. Besides that, they can carry a load up to 50kg per meter and are fully customizable in terms of size, length, and angle, so they are able to fit very tight spaces and multiple-floor layouts very well.
The modular nature of the conveyor allows it to be easily connected to the existing equipment, and at the same time, the complete safety measures provided will allow it to be running continuously 24/7 in a stable manner.
It is geared for scenarios like production across multiple levels, warehouse logistics, and processing of food products.This inclined conveyor will enhance your productivity, will help you to reduce your worker expenses, and will result in excellent ROI.
Product Specifications Table
| Category | Parameter | Unit | Standard Version | Deluxe Version |
|---|---|---|---|---|
| Basic Attributes | Total Weight | kg | 820 / 950 | 950 |
| Frame Color | - | Industrial paint (Standard RAL3020 Red) | Industrial paint (Standard RAL3020 Red) | |
| Main Body Material | - | Carbon steel (frame + body panels) | Carbon steel (frame + body panels) | |
| Belt Running Direction | - | Reversible | Reversible | |
| Rated Supply Voltage | V | 220/380 | 220/380 | |
| Installation & Mobility | - | Mobile type (2 swivel casters with brakes + 2 fixed casters) | Mobile type (2 swivel casters with brakes + 2 fixed casters) | |
| Belt Core Parameters | Conveyor Belt Material & Thickness | - | 5mm green incline conveyor belt | 5mm green incline conveyor belt (Hantang) |
| Belt Width | mm | 600/800 (optional) | 600/800 (optional) | |
| Steel Plate Size Under Belt | mm | 905 | 905 | |
| Total Machine Width (incl. belt & frame) | mm | 1120/1320 | 1120/1320 | |
| Belt Conveying Speed | m/min | 15–40 (equipped with Shihlin or equivalent inverter) | 15–40 (equipped with Shihlin or equivalent inverter) | |
| Structural Dimensions | Platform Length (L1) | mm | 990 | 990 |
| Incline Section Length (L2) | mm | 3050 | 3050 | |
| Load Roller Fork Arm Length (L3) | mm | 3600 (detachable, designed for heavy load) | 3600 (detachable, designed for heavy load) | |
| Machine Length (without fork arms) | mm | 4170 | 4170 | |
| Tail End Height (H) | mm | 970 (adjustable from 700 to 1000) | 970 (adjustable from 700 to 1000) | |
| Fork Arm Bottom Ground Clearance | mm | 1700 | 1700 | |
| Belt Conveying Surface Height | mm | 2300 | 2300 | |
| Structural Strength | Base Frame Rectangular Tube | mm | 80×120, wall thickness 3.75 | 80×120, wall thickness 4.75 |
| Rotation Arm Rectangular Tube | mm | 80×120, wall thickness 3.75 | 80×120, wall thickness 4.75 | |
| Fork Arm Rectangular Tube | mm | 60×120, wall thickness 2.75 | 60×120, wall thickness 2.75 | |
| Body Panel Thickness | mm | 2.0 (laser cut + CNC bending) | 2.75 (laser cut + CNC bending) | |

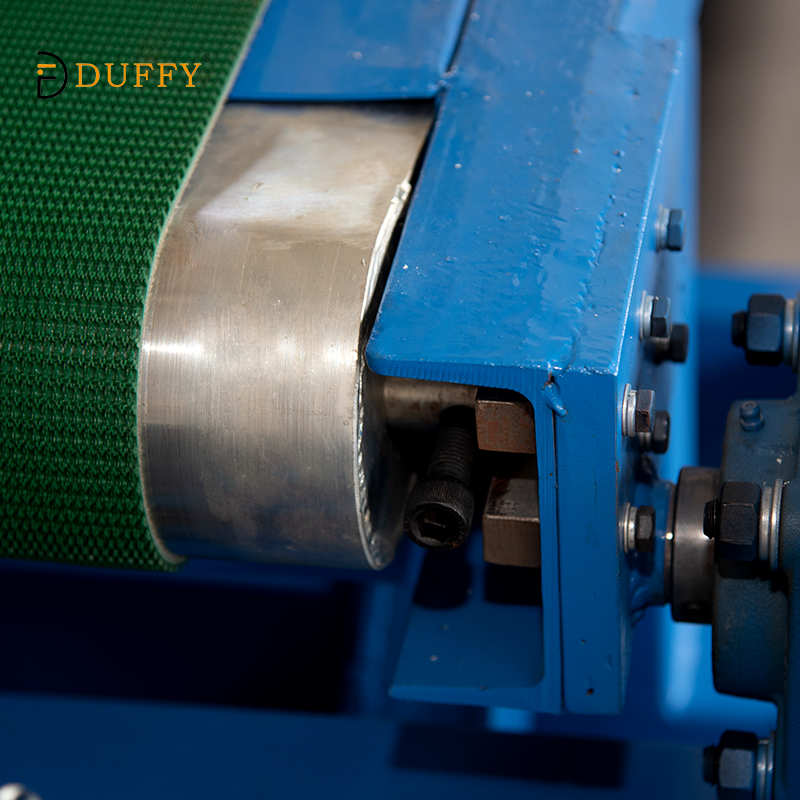

| Drive Roller Diameter | mm | 89 (precision CNC machined) | 89 (precision CNC machined) | |
| Idler Roller Diameter | mm | 76 (precision CNC machined) | 76 (precision CNC machined) | |
| Load & Power | Rated Load (on belt surface) | kg/m² | 50 | 50 |
| L3 Fork Arm Transmission | - | 6m/8m/10m Poly-V belt | 6m/8m/10m Poly-V belt | |
| Motor Drive (Brand/Power) | - | 1.5 kW geared motor | Taibang/Zhongda or equivalent, 1.5 kW geared motor | |
| Hydraulic Power Unit | kW | 1.5 | 1.5 | |
| Main Electrical Component Brands | - | Chint, Delixi, etc. (top-tier domestic brands) | Chint, Delixi, etc. (top-tier domestic brands) | |
| Packaging | Packaging Material | - | PE stretch film | PE stretch film |
| Whole Machine Warranty | months | 12 | 12 |
Factory Introduction
Enhance the professionalism and attractiveness of the text below. The main ideas should be preserved and the reader's attention should be caught by a creative presentation of them. Optimize your warehouse and distribution efficiency with tailor-made intelligent logistics solutions from Duffy Machinery, a leading material handling specialist based in Fujian, China. Since our establishment in 2007, we have been committed
to perfecting intelligent operation systems for over 10 years, while each member of our main team has a professional manufacturing experience of 14 years for every bespoke project. Besides a 35,000㎡ plant and
a team of 100 skilled workers, where a total of seven complete production lines enables us to maintain stable production and to deliver on time, we also have the capacity to manufacture 73,000 meters of roller
conveyor lines and 2,000 incline conveyors annually; We have received more than 40 professional certifications and patents, among which are ISO9001, CE, EACC and national high-tech enterprise certification, and
they perfectly manifest our quality strength. Our logistics solutions are recognized by customers worldwide such as the Middle East, South America, North America, and Southeast Asia, etc., we also provide a
comprehensive after-sales service to ensure the operation of the equipment is stable and efficient.
Factory Certificate
We don't just build machines; we build reliability, backed by 42 international certifications including ISO9001, CE, and EACC.
Customer concerns (FAQ)
Q1: What throughput capacity can the EDWS-600 system achieve?
A: The EDWS-600 is tailored for facilities with extremely high throughput, and the capacity ranges 3,000 to 5,000 packages per hour depending on the size and spacing of packages;
Packing a powerful parcel delivery punch, in other words.
Q2: How is the system capable of working with irregularly-shaped or soft items?
A: Our advanced 3D scanning technology follows the way of light-curtain or laser-sensing methods to detect and measure items such as polybags that are non-cubic,
which makes it very accurate when it comes to dimension capturing of irregular items where traditional sensors fail.
Q3: Is it true that dynamic weighing causes imbalance or error in comparison with static weighing?
A: Not at all. In fact, these systems implement a combination of high-frequency filtered load cells and highly precise compensation algorithms
which, besides helping achieve four times speed increase while maintaining meter accuracy, also enable achieving industry-level accuracy (usually within ±50g to 100g).
Q4: Can the system scan blurred or rotated barcodes?
A: Yes. The self-learning recognition engine with a strong wide-angle field of view and powerful image enhancement can
duly read barcodes that are twisted, partially damaged, or covered by a thin piece of plastic film with very high success rates.
Q5: How long does it usually take to integrate the DWS system with our existing ERP?
A: With the help of our standard API and modular software architecture, essential data integration can be done within several days most of the time.
Support for different protocols such as TCP/IP, HTTP, and specialized database connections is also available.
