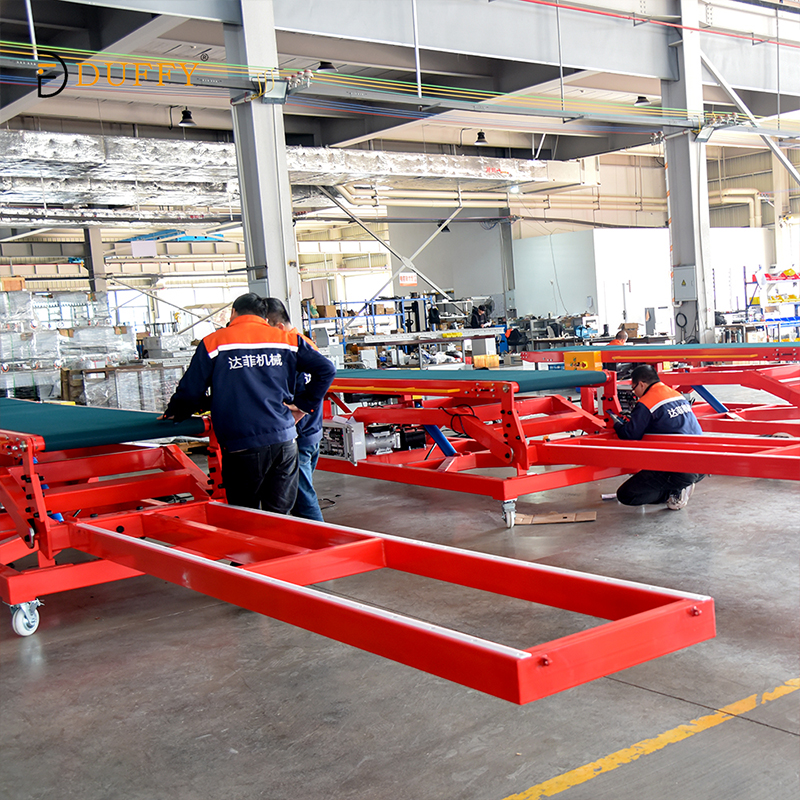

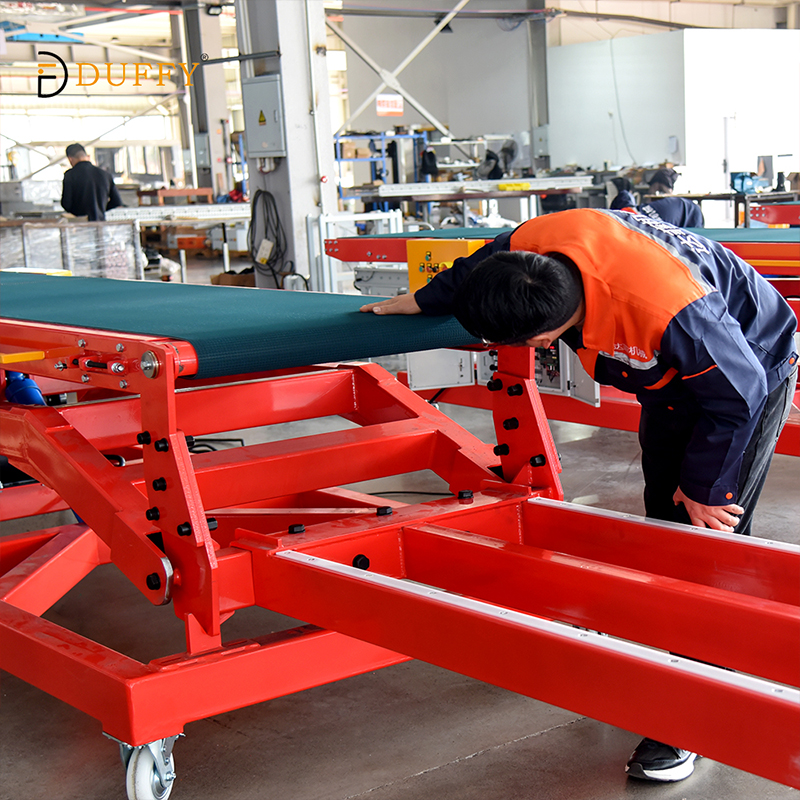

Duffy inclined conveyor is a machine that can move materials from one level to another in a production line or warehouse. It can save time and reduce costs by replacing manual handling and truck operations.
Our conveyors have a special belt that prevents slipping; they can go uphill and downhill as well. You can change the size, shape and angle of the unit. It is perfect for narrow spaces, multi-floor production lines and different industry applications.
The conveyor is a modular design, so you can change it completely to make it work well with your existing machines. Comprehensive safety features such as non-slip belts, protective rails and emergency stop buttons ensure dependable and secure operation 24/7.
Great for connecting different floors in production, dock-to-shelf logistics, and food & beverage lines, Duffy inclined conveyor is a very efficient space connector that increases productivity, reduces labor costs and offers a good return on investment.
Expansion ratio: 530:1000/ 530:1250/ 740:2000
Transmission speed: 10 - 30 m/min
Product Specifications Table
| Category | Parameter | Unit | Standard Version Specs |
| Basic Attributes | Total Weight | kg | 820 |
| Frame Color | - | Industrial-grade paint (Standard RAL3020 Red) | |
| Main Body Material | - | Carbon Steel (frame + body plates) | |
| Belt Running Direction | - | Reversible | |
| Rated Supply Voltage | V | 220/380 | |

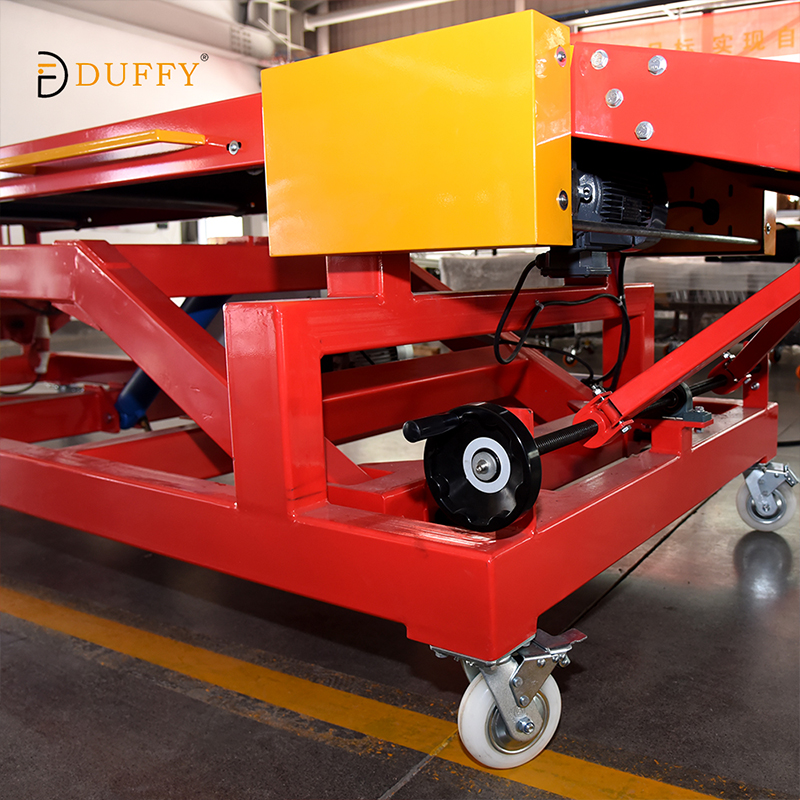

| Installation & Mobility | - | Mobile (2 swivel casters with brakes + 2 fixed casters) | |
| Belt Core Parameters | Conveyor Belt Material & Thickness | - | 5mm Green Incline Conveyor Belt |
| Belt Width | mm | 600/800 (optional) | |
| Steel Plate Size Under Belt | mm | 905 | |
| Total Machine Width (incl. belt & frame) | mm | 1120/1320 | |
| Belt Conveying Speed | m/min | 15–40 (with Shihlin or equivalent brand inverter) | |
| Structural Dimensions | Platform Length (L1) | mm | 990 |
| Incline Section Length (L2) | mm | 3050 | |

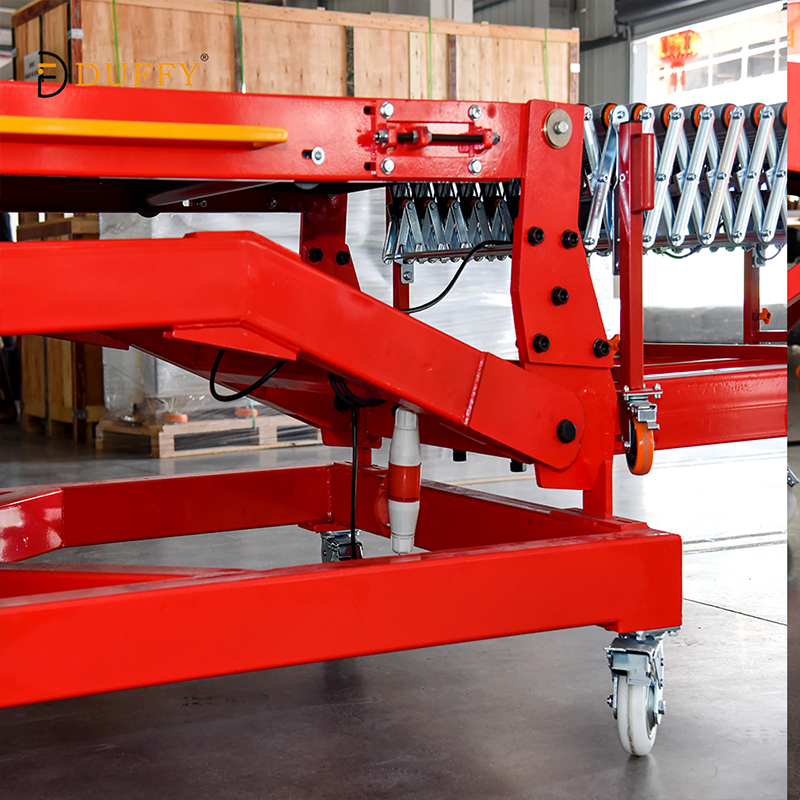

| Load Roller Fork Arm Length (L3) | mm | 3600 (designed for load, detachable) | |
| Machine Length Without Fork Arms | mm | 4170 | |
| Tail End Height (H) | mm | 970 (adjustable 700–1000) | |
| Fork Arm Bottom Ground Clearance | mm | 1700 | |
| Belt Conveying Surface Height | mm | 2300 | |
| Structural Strength | Base Frame Rectangular Tube Specs | mm | 80*120, thickness 3.75 |
| Rotation Arm Rectangular Tube Specs | mm | 80*120, thickness 3.75 | |
| Fork Arm Rectangular Tube Specs | mm | 60*120, thickness 2.75 | |
| Body Plate Thickness | mm | 2.0 (laser cut + CNC bent) | |
| Drive Roller Diameter | mm | 89 (precision CNC machined) | |
| Idler Roller Diameter | mm | 76 (precision CNC machined) | |
| Load & Power | Rated Load (belt conveying surface) | kg/㎡ | 50 |
| L3 Fork Arm Load | - | 6m/8m/10m Poly-V Belt | |

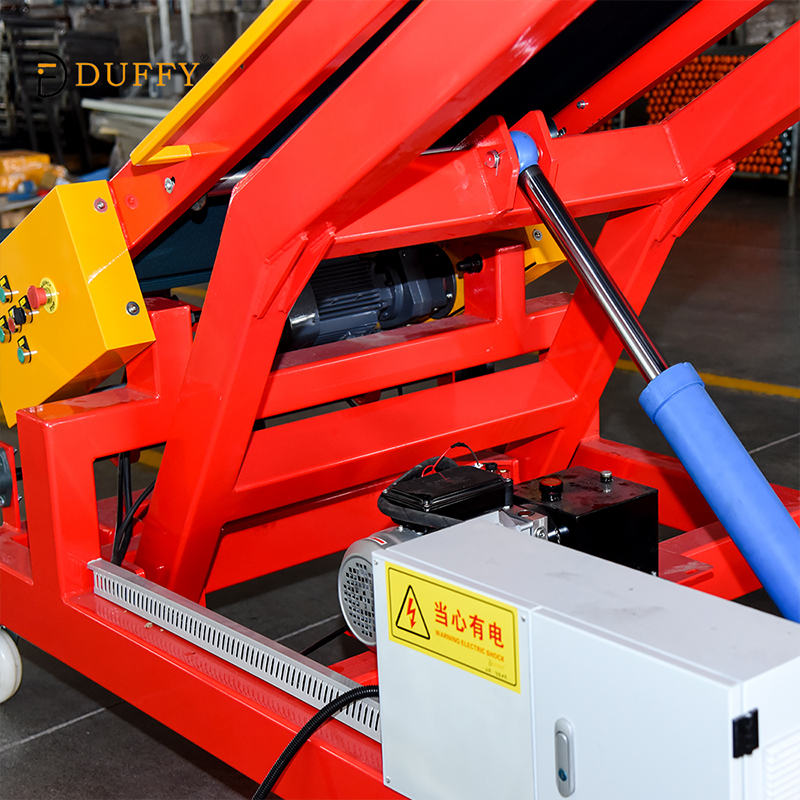

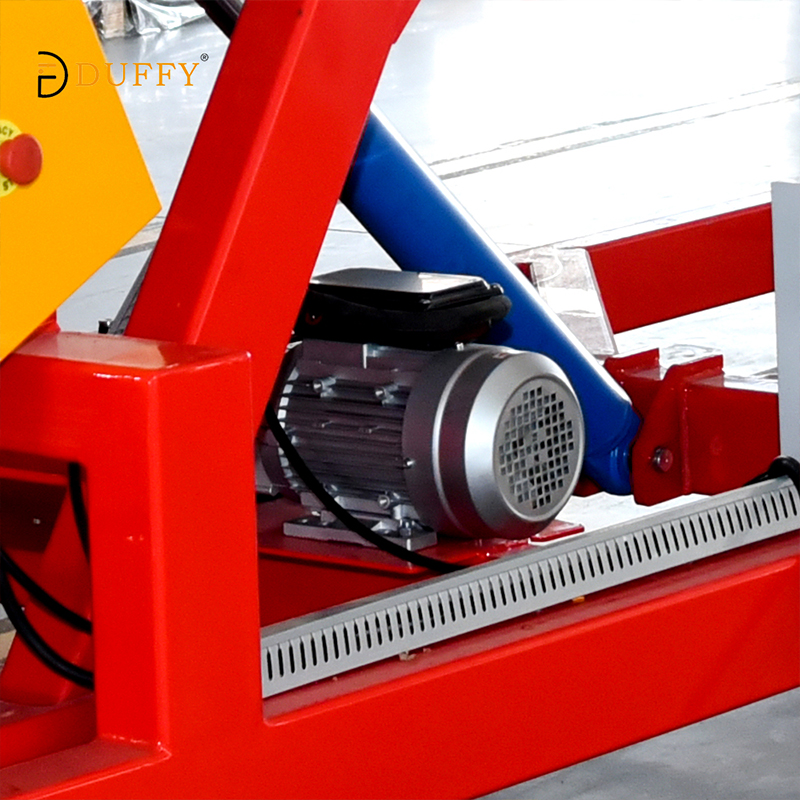

| Motor Drive (Brand/Power) | - | 1.5KW geared motor | |
| Hydraulic Power Unit Power | KW | 1.5 | |
| Main Electrical Component Brands | - | Chint, Delixi, etc. (domestic first-tier) | |
| Packaging | Packaging Material | - | PE stretch film |
| Whole Machine Warranty | months | 12 |
Factory Introduction
Optimize your warehouse and distribution efficiency with tailored intelligent logistics solutions from Duffy Machinery, a leading material handling specialist based in Fujian, China.Since our establishment in 2007,
we have spent more than 10 years refining intelligent operational systems, with our core team offering 14 years of professional manufacturing experience for each customized project.

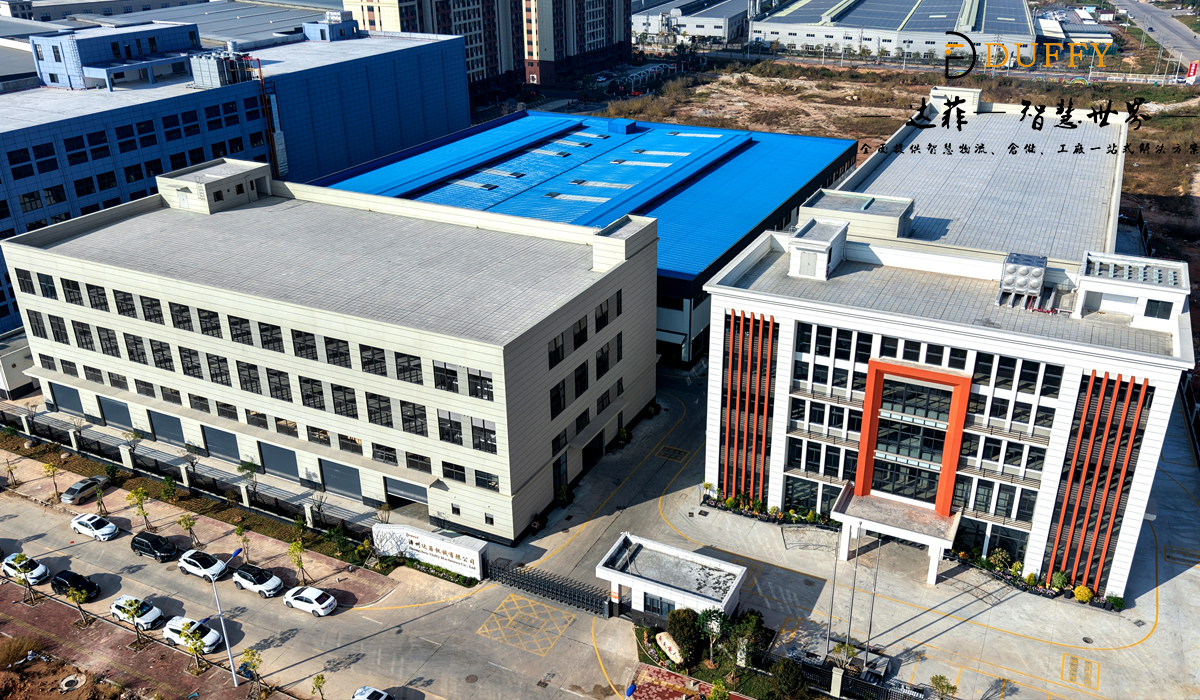

With a 35,000㎡ factory and 100+ skilled staff, Our factory is capable of producing 73,000 meters of roller conveyor lines and 2,000 incline conveyors annually; with a total of seven complete production lines,
we ensure stable production and on-time delivery. We have obtained over 40 professional certifications and patents, including ISO9001, CE, EACC and national high-tech enterprise certification,
which fully demonstrate our quality strength. Our solutions are widely
recognized by global customers in the Middle East, South America, North America, Southeast Asia and other regions, supported by comprehensive after-sales service to ensure stable and efficient operation.
Factory Certificate
Our product quality and safety standards are guaranteed to meet global requirements as we have been awarded with a total of 42 recognized industry certificates including ISO9001, CE, and EACC.
Our R&D team consists of 18 highly skilled engineers with extensive experience in research & development, mechanical design, installation on-site, and after-sales support, with solutions tailored to specific projects.
Our service range is comprehensive from start to finish and includes initial engineering design to system commissioning and phased maintenance, thus making project implementation hassle free and minimalizing operational challenges for clients.
Expansion in order sizes lead to a leading fire door manufacturer in Jinhua, Zhejiang needing more efficient material handling processes. Concretely, heavy materials like steel panels and fire-resistant components were utilized, which made the task of finding an appropriate material handling system a challenge. Initially, traditional methods fell short in matching the increased production schedules leading to material bottlenecks, line disruptions, and delivery delays.
Choosing Duffy Machinery’s reciprocating vertical conveyor was a great fit as the machinery can guarantee a high-quality structure and the credible performance even when subjected to heavy loads. The various production parts namely, cutting, assembly, quality inspection are all connected seamlessly by the system. Furthermore, conveying cycles can be adjusted depending on actual production needs.
After the introduction of the system, heavy material handling efficiency was increased by close to 30%, and production downtime resulting from material shortages was reduced by over 80%, in addition to the manufacturer of fire doors becoming able to achieve a continuous flow of materials and thus a reliable infrastructure for further capacity growth.
Customer concerns (FAQ)
1. What’s the max load for single roller and full track?
Standard: 100kg/㎡; Heavy-duty (1.5mm wall): 150kg/㎡. All rollers pass 72-hour full-load test. Share your product weight for tailored advice.
2. Can width/length be customized? How about packaging for assembly?
Customizable (width 300–1500mm, modular length). Delivered as full assembly kits; 2 workers finish assembly in hours (no welding).
3. What affects pricing? Any bulk discounts?
Prices vary depending on the type of materials, load, and size, as well as the number of IAccessories. For orders over 100 meters, there is a discount of 5-15%. Free layout design available.
4. What’s the MOQ for conveyors?
1set
5. What shipping methods do you offer?
Sea (FCL/LCL), Land (cross-border), Air (urgent parts/small components).
6. How is equipment packaged for international shipping?
PE stretch film (inner) + metal/wood stands (support) + ISPM-15 fumigation-free wooden crates (outer).
7. What payment methods are accepted?
T/T (Telegraphic Transfer) and UnionPay.
