EDWS-600

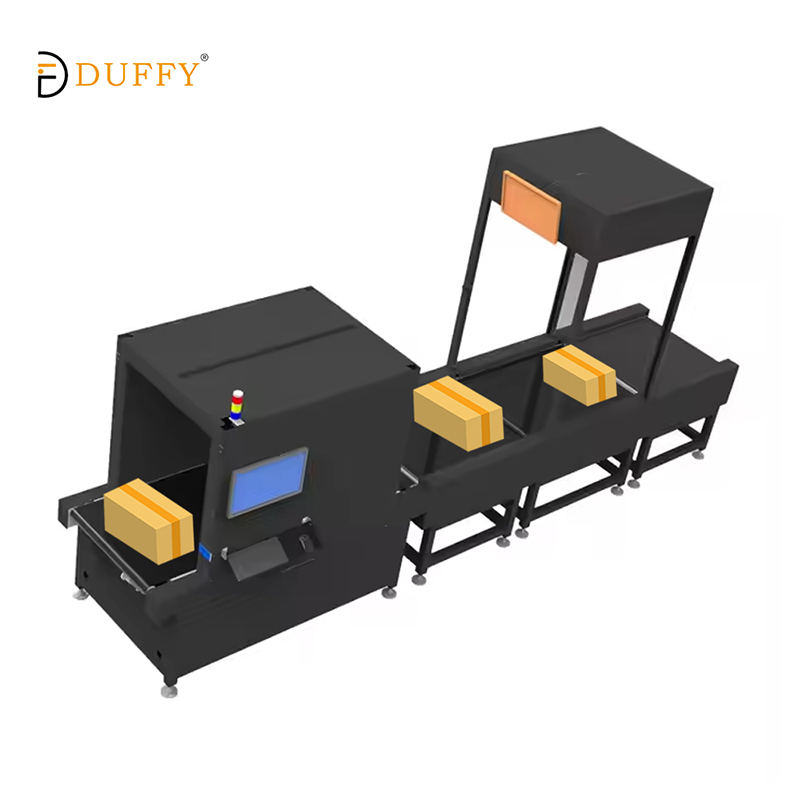

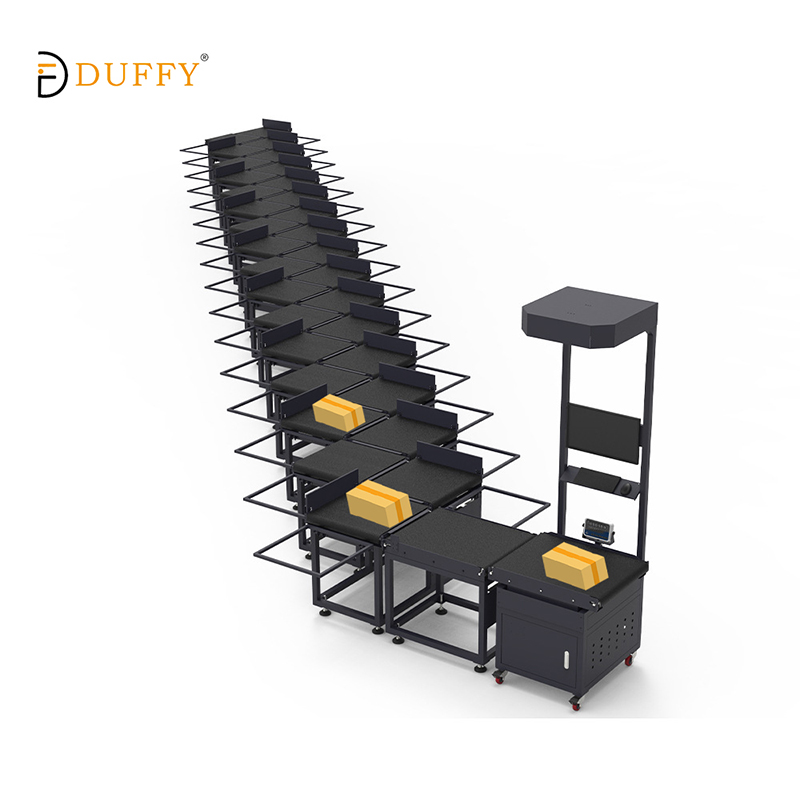

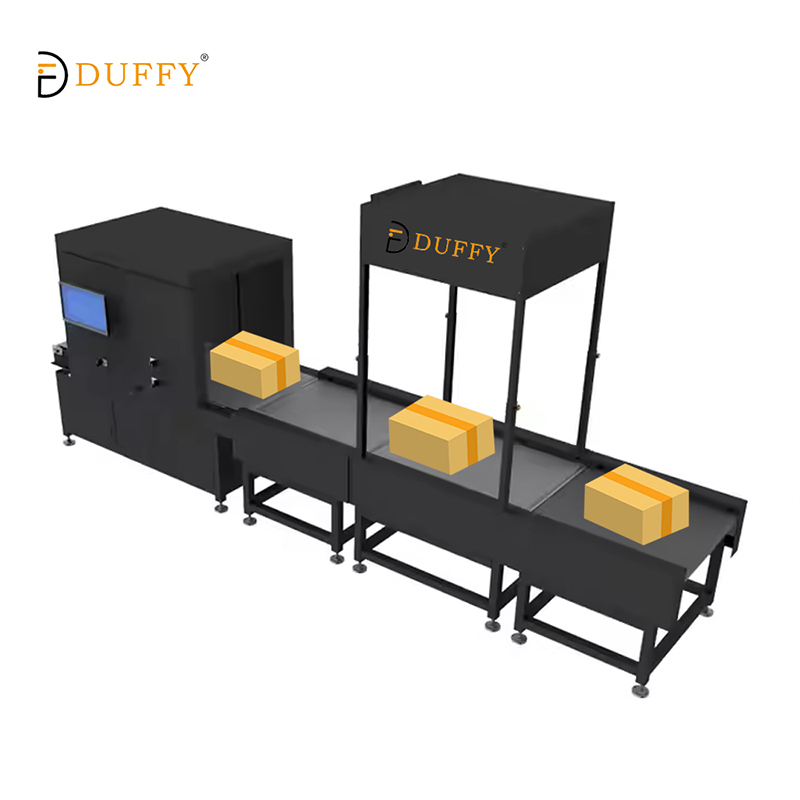

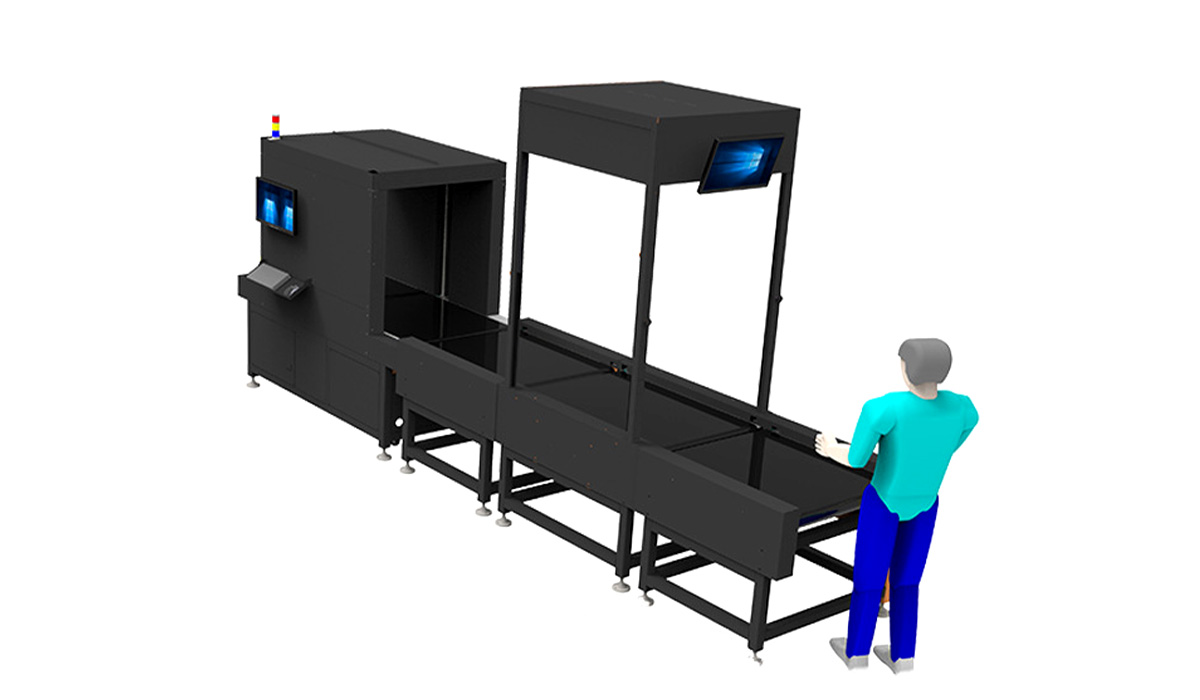

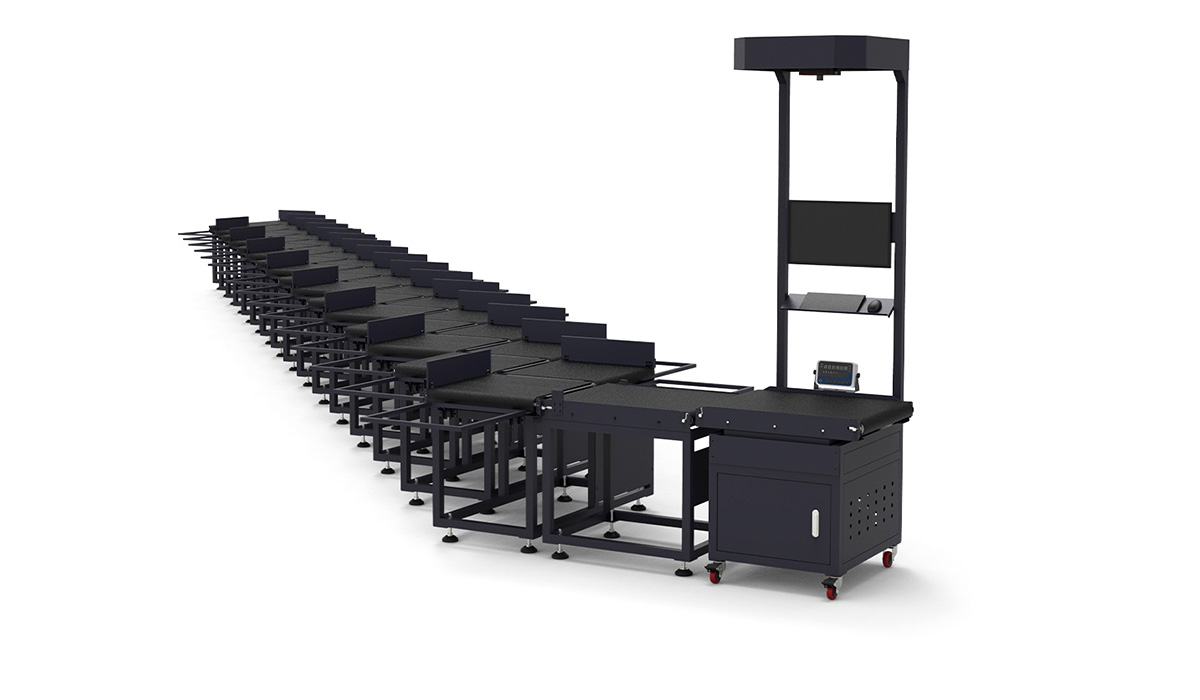

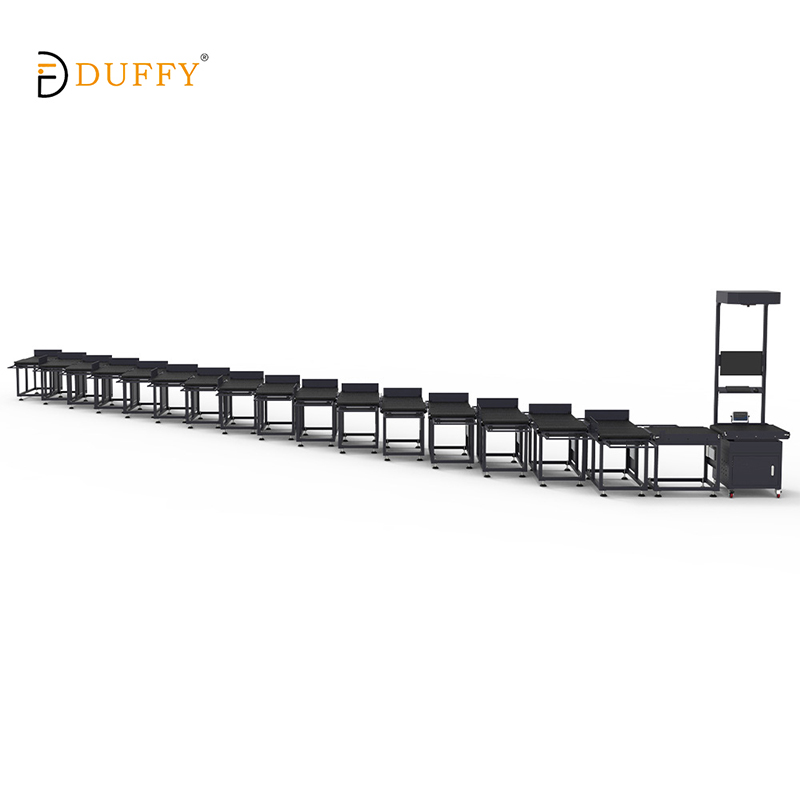

In essence, the EDWS-600 Express DWS System is an automation solution operating at a high-level speed, which aims to record dimensions and weights of parcels being moved on a conveyor belt. By combining top-quality industrial sensors with smart data processing software, it can totally eliminate manual scans and weighing operations, hence enabling a continuous and high-volume running of parcels in an express delivery environment.
For logistics centers, this solution is an effective method to convert parcel details into digital data instantly, thus guaranteeing that each shipment is tracked with a very high level of accuracy. Plus, by making induction and measurement processes simple and smooth, the EDWS-600 model serves as a facility’s means to boosting throughput, shortening human errors, and at the same time, meeting the highest standards of operation even during the busiest times.
Key Features & Advantages
Volumetric Measurement
Through the usage of high-speed 3D volumetric scanning, the device is capable to measure accurately the dimensions of parcels that are moving along. This method is so developed that the measuring of packages will always be very exact, even if the packages have unusual shapes or different orientations, which is very useful for things like figuring out how much space it will take up and for calculating shipping costs.
Weight Measurement and Identification
As well as being equipped with state-of-the-art load cells, the system also has an AI integrated barcode recognition that allows it to weigh and capture the item data while the conveyor belt is moving. Those AI software handle the label reading at incredibly high rates even when labels are distorted or poorly printed, which means that there will be a constant and trustworthy stream of information flow.
Integrating The Software Effortlessly
The Package DWS System makes the sharing of data between WMS and ERP platforms updated in real-time. It closes the physical to digital records loop instantly which not only keeps inventory and billing updated at all times but also lowers administrative and data entry-related errors.
Modular System and Analytics
The system comes in the form of modular architecture so that it can be customized in many ways in terms of warehouse layout and scaling requirements. Plus, the cloud-based analytics panel offers comprehensive data regarding system performance that can help managers in pinpointing choke points and changing the sorting process entirely for the best results.
| Item | Parameter Description |
|---|---|
| Name | Intelligent Scan Code Weighing Volume Measurement All-in-One Machine |
| Measurement Principle | Intelligent Light Curtain Measurement Technology |
| Weighing Accuracy | ±20-50g |
| Minimum Measurable Cargo Weight | 100g |
| Minimum Measurable Cargo Size Range | 50mm (L) × 50mm (W) × 50mm (H) |
| Maximum Measurable Cargo Weight | 50Kg |
| Maximum Measurable Cargo Size Range | 800mm (L) × 800mm (W) × 700mm (H) |
| Dimension Measurement Accuracy | For regular packages: 0-±5mm |
| Equipment Table Size | 1200mm × 800mm (Effective scale surface size) |
| Measurement Speed | 1 to 3 seconds per piece |
| Efficiency | 1200-2400 pieces/hour |
| Equipment Length | 2200mm |
| 1D Barcode Supported | Code128 / Code39 / Code93 / EAN / ITF25 / Codabar |
| 2D Barcode Supported | QR / Datamatrix |
| Barcode Resolution | 10mils / 0.254mm |
| Supported Object Shapes | Regular / Irregular |
| Storage Function | Supports storing photo of each cargo |
| External Support | Windows system; compatible with scanning, weighing, printing; manual data entry supported; provides data interface for system docking |
| Product Composition | Complete machine frame (baked paint or powder coating); Code reading module (industrial camera, industrial lens, data cable, power cable); Weighing module (display instrument, load cell, data cable, power adapter); Measurement module (measurement lens, data cable); Computer set (21.5-inch screen) |
| Usage Scenarios | New product inbound, recommended packaging, logistics warehouse management, truck precise scheduling, outbound freight settlement, etc. |
The EDWS-600 is a great helper in the logistics world by cutting down on manual measuring tasks, as a result, there is a direct increase in efficiency and throughput. This system provides industry-best levels of accuracy in the measurement and weighing of parcels, complete with data quality that helps in reduction of shipping errors and lastly, it unlocks cost optimization. On the software front, it connects very smoothly with existing WMS and ERP applications for those who wish to do system integration with minimum effort. Besides all these, the system keeps itself ready for new challenges in the industry by continuously upgrading its software.
Factory Introduction
Optimize your warehouse and distribution efficiency with tailored intelligent logistics solutions from Duffy Machinery, a leading material handling specialist based in Fujian, China.Since our establishment in 2007, we have spent more than 10 years refining intelligent operational systems, with our core team offering 14 years of professional manufacturing experience for each customized project.
With a 35,000㎡ factory and 100+ skilled staff, Our factory is capable of producing 73,000 meters of roller conveyor lines and 2,000 incline conveyors annually; with a total of seven complete production lines, we ensure stable production and on-time delivery. We have obtained over 40 professional certifications and patents, including ISO9001, CE, EACC and national high-tech enterprise certification, which fully demonstrate our quality strength. Our solutions are widely recognized by global customers in the Middle East, South America, North America, Southeast Asia and other regions, supported by comprehensive after-sales service to ensure stable and efficient operation.
Factory Certificate
We're not just about providing top-notch hardware - we're about giving you complete peace of mind. With 42 prestigious industry certifications like ISO9001, CE, and EACC.
Customer concerns (FAQ)
Q1: How many parcels can the EDWS-600 system handle at most each hour?
A: The EDWS-600 is capable of being used in high-speed setups and that it may process 3,000 to 5,000 parcels per hour maximum depending on package size and spacing, so it is suitable for large-scale
express delivery hubs.
Q2: What is the system's approach towards irregular or soft packages?
A: Our volumetric scanners that work at high-speed apply the latest light-curtain or laser technology to even consider measuring non-cubic items like polybags and uneven parcels, ensuring
that the dimension capture will be precise where typical sensors might fail.
Q3: How much floor space will I need for this?
A: Not much. The CVL's best feature is its very small footprint. If you compare spiral chutes or inclined transport belts, which take up large amounts of horizontal space,
a CVL requires only a few square meters. So it can perfectly serve you as a solution for a facility retrofitting, or those city distribution centers with very limited space.
Q4: Will the system be able to transport different package sizes together without manual changing?
A: Indeed. Provided the different items do not exceed the maximum platform size, the system will perform
Mixed Flow Transport. Smart sensors continuously watch to see the spacing of the incoming items and automatically adjust the lift speed accordingly. This ensures that various box sizes or totes enter the platforms smoothly and safely without human operation.
Q5: What kind of maintenance should I expect in the long term for a system operating around the clock?
A: Duffy Machinery has made chains of very high material strength as well as guides of self-lubricating types that help to reduce both friction and wear. Our knowledge gained from producing
800,000 rollers annually leads to drive components which comply with the highest precision requirements. System’s service life can easily surpass 10 years under
heavy-duty conditions if it only undergoes basic routine inspections and lubrications.
Q6: How is the system able to keep cargo secured while traveling at high speeds vertically?
A: The system incorporates different layers of safety. There are crush prevention sensors for the
entry area, platform alignment is monitored continuously during the whole lift, and the outlet location where the stuff is gathered basically has a detection mechanism for accumulation of the material which is to be released.
A system whose PLC is capable of triggering a very short emergency stop if a misalignment or downstream jam should be detected can prevent product damage or mechanical failure.
