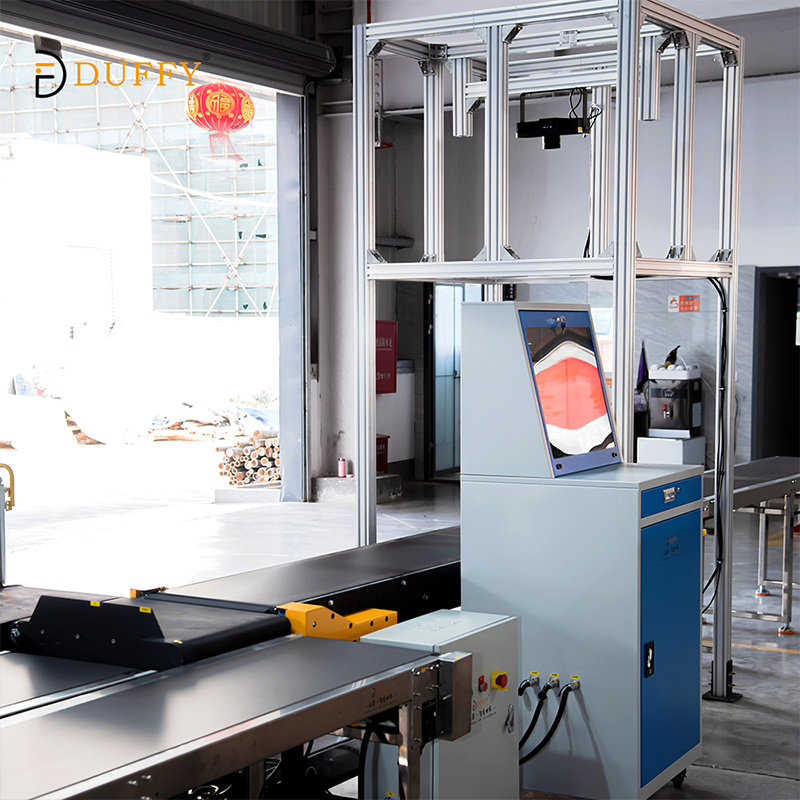

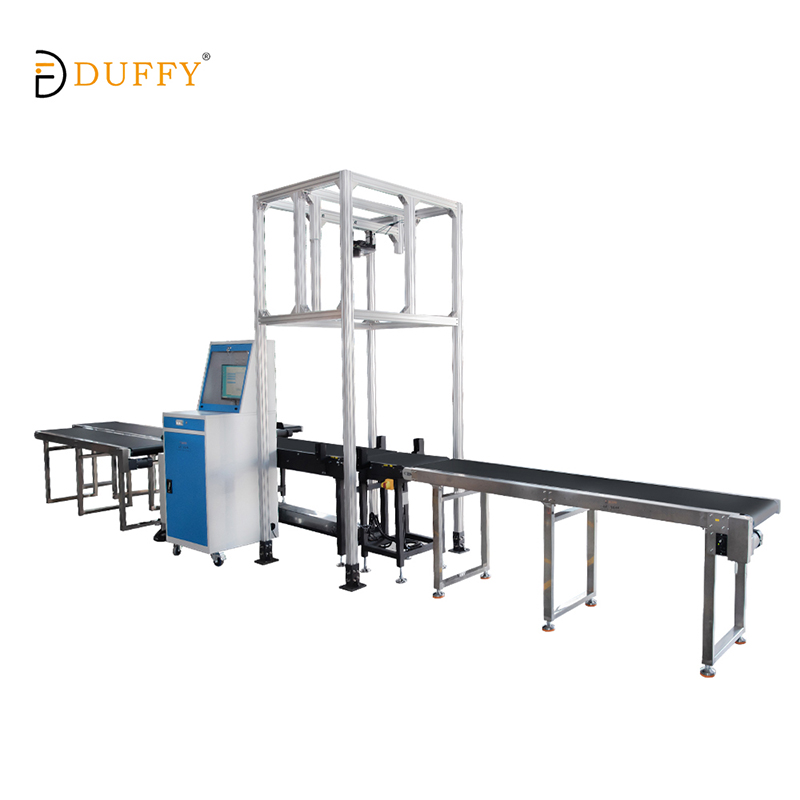

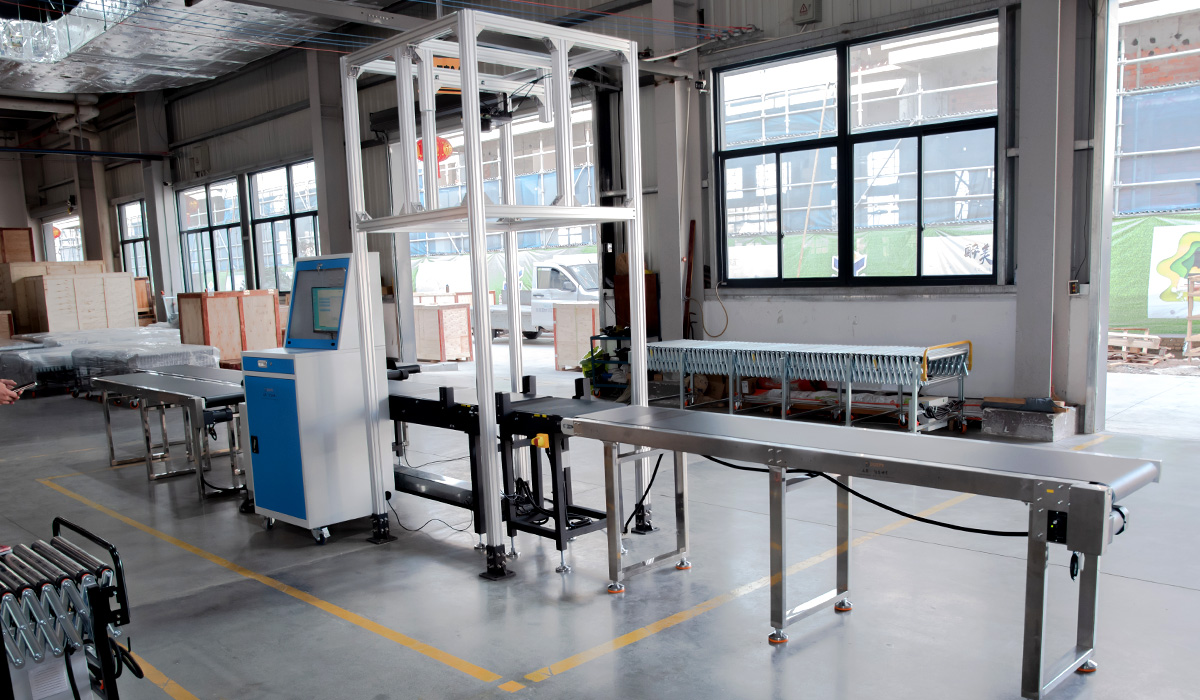

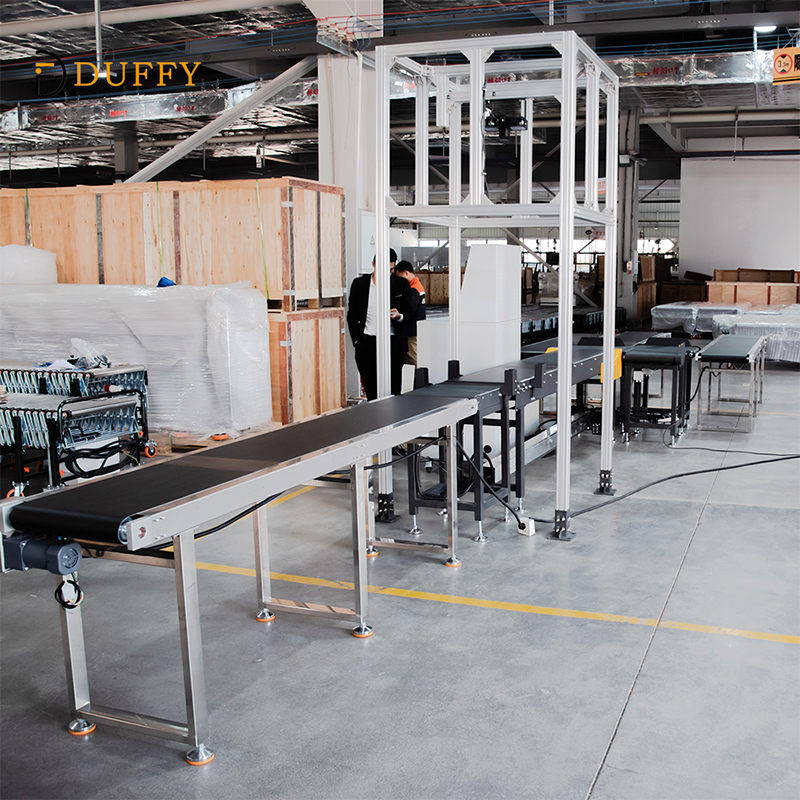

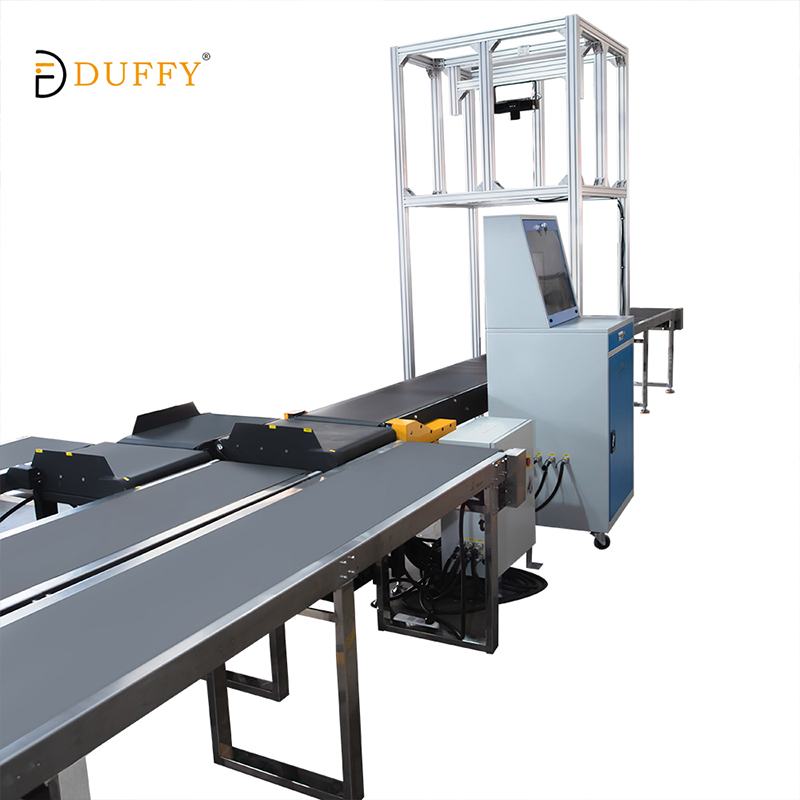

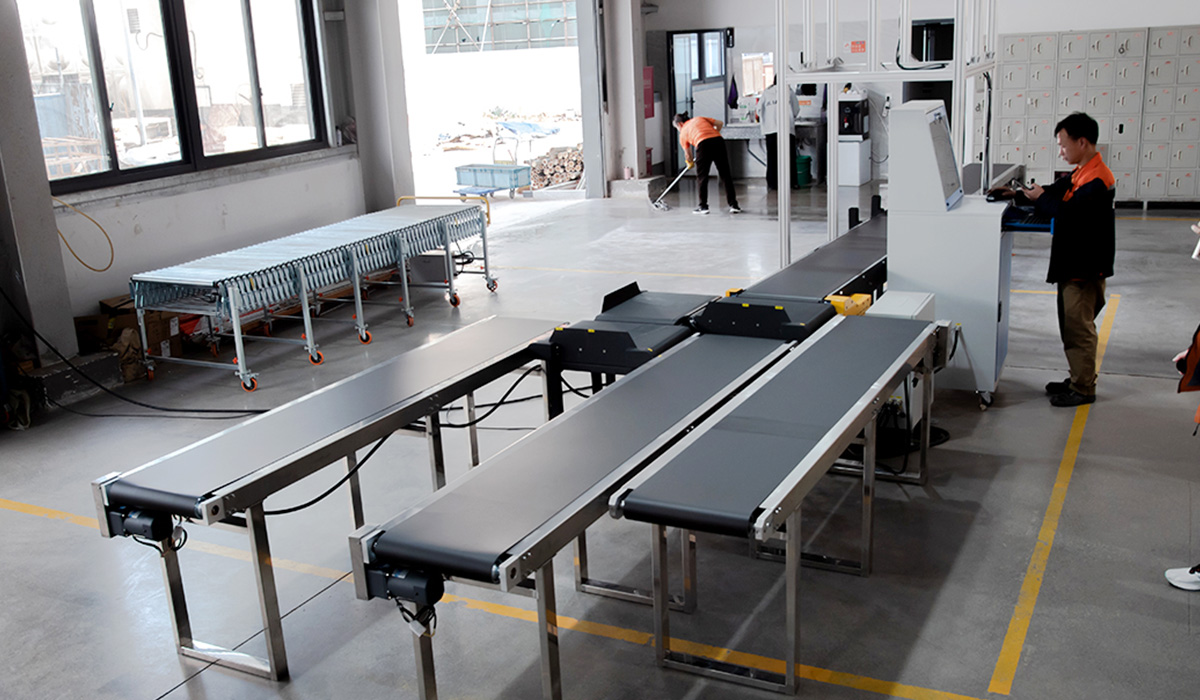

DWS Intelligent Weighing And Sorting System
integrated solution provides automated dimensioning, weighing and sorting for logistics hubs and storage facilities.
The DWS-500 Smart System combines accurate weighing, scanning, and dimensioning in a single automatic process. This system is meant for distribution centers of the future and employs AI driven technology to get precise parcel data at high
speeds to deliver consistent dimensional weight calculations and ensure orderly sorting.
The DWS-500 intelligent system is a combination of first-class weighing and dimensional measurement technologies, and efficient, high-speed sorting:
Highly accurate volumetric measurement in 3D ensures that all types of items are accurately data captured
The weighing process is performed without stopping the parcel transport, and the very high accuracy level is ensured through the use of industrial level load cells.
Advanced data processing using AI allows the system to synchronise with existing management software, such as WMS or ERP.
Modular construction and self-diagnostic features provide flexibility and responsiveness to the maintenance needs.
Combining these three components in one system will certainly reduce human errors and will also contribute to lowering there shipping costs. It is a solution that makes the data more accurate, increases the throughput, and yet it is simple and Reduce further problems.
Core Technology & System Features
Accuracy of the 3D Data Capture:
High-accuracy, 3D volumetric scanning technology provides the system with the ability to capture accurate parcel dimensions instantly. With its support of reliable measuring capabilities for items made of different shapes, it is an indispensable element of the whole system for dimensional weight processing.
Dynamic Weighing:
The highly sensitive load-cells of industrial quality allow the DWS-500 to work as a high-speed dynamic weight measuring equipment without breaking the production line. Thus, the operation can be nonstop, whereas the exactness of the
measurement complies with the strict requirements for logistics billing and auditing.
AI-Driven Data Integration
The system operates advanced AI-powered algorithms that improve sorting decisions and enhance WMS/ERP systems integration.
parcel data is instantly updated in your existing management software, ensuring effective tracking and control.
Modular and Smart Maintenance Features
The modular construction of the system allows a very flexible configuration to match the needs of the warehouse. Real-time monitoring of the operational status using an integrated self-diagnostic system makes maintenance easier and minimizes
potential downtime, especially in 24/7 environment.
| Item | Parameter Description |
|---|---|
| Name | Intelligent Scan Code Weighing Volume Measurement All-in-One Machine |
| Measurement Principle | Intelligent Light Curtain Measurement Technology |
| Weighing Accuracy | ±20-50g |
| Minimum Measurable Cargo Weight | 100g |
| Minimum Measurable Cargo Size Range | 50mm (L) × 50mm (W) × 50mm (H) |
| Maximum Measurable Cargo Weight | 50Kg |
| Maximum Measurable Cargo Size Range | 800mm (L) × 800mm (W) × 700mm (H) |
| Dimension Measurement Accuracy | For regular packages: 0-±5mm |
| Equipment Table Size | 1200mm × 800mm (Effective scale surface size) |
| Measurement Speed | 1 to 3 seconds per piece |
| Efficiency | 1200-2400 pieces/hour |
| Equipment Length | 2200mm |
| 1D Barcode Supported | Code128 / Code39 / Code93 / EAN / ITF25 / Codabar |
| 2D Barcode Supported | QR / Datamatrix |
| Barcode Resolution | 10mils / 0.254mm |
| Supported Object Shapes | Regular / Irregular |
| Storage Function | Supports storing photo of each cargo |
| External Support | Windows system; compatible with scanning, weighing, printing; manual data entry supported; provides data interface for system docking |
| Product Composition | Complete machine frame (baked paint or powder coating); Code reading module (industrial camera, industrial lens, data cable, power cable); Weighing module (display instrument, load cell, data cable, power adapter); Measurement module (measurement lens, data cable); Computer set (21.5-inch screen) |
| Usage Scenarios | New product inbound, recommended packaging, logistics warehouse management, truck precise scheduling, outbound freight settlement, etc. |
Factory Introduction
Optimize your warehouse and distribution efficiency with tailored intelligent logistics solutions from Duffy Machinery, a leading material handling specialist based in Fujian, China.Since our establishment in 2007, we have spent more than 10 years refining intelligent operational systems, with our core team offering 14 years of professional manufacturing experience for each customized project.
With a 35,000㎡ factory and 100+ skilled staff, Our factory is capable of producing 73,000 meters of roller conveyor lines and 2,000 incline conveyors annually; with a total of seven complete production lines, we ensure stable production and on-time delivery. We have obtained over 40 professional certifications and patents, including ISO9001, CE, EACC and national high-tech enterprise certification, which fully demonstrate our quality strength. Our solutions are widely recognized by global customers in the Middle East, South America, North America, Southeast Asia and other regions, supported by comprehensive after-sales service to ensure stable and efficient operation.
Factory Certificate
We're not just about providing top-notch hardware - we're about giving you complete peace of mind. With 42 prestigious industry certifications like ISO9001, CE, and EACC.
Customer concerns (FAQ)
Q1: How precise is the DWS-500 system in measuring parcels?
A: The system is based on 3D volumetric scanning with high precision and use of industrial load cells, so both dimensions and weight are obtained with surgical accuracy. This leads to minimizing billing errors and to
having optimized shipping costs.
Q2: Is the DWS system compatible with our software?
A: Definitely. DWS-500 is developed for an effortless and real-time data integration with the majority of standard WMS and ERP platforms, which translates into synchronized parcel tracking and
inventory management.
Q3: What is the largest parcel size the DWS-500 can process?
A: Naturally, depending on the model, our standard DWS systems are designed to accommodate a wide variety of parcel sizes, ranging from small envelopes to large industrial cartons, while still maintaining
high-speed operations across all dimensions.
Q4: In what way does the AI-driven sorting raise efficiency?
A: The AI algorithms process the captured data immediately and decide the most efficient sorting route, which diminishes congestion and enables continuous running of sorting at high speed even at
peak times in distribution centers.
Q5: Is a maintenance operation of the system difficult?
A: On the contrary. The DWS-500 is equipped with a self-diagnostic system that tracks performance in real-time. With this, maintenance can be planned in advance, and operational
disruptions can be minimized during peak times.
Q6: What certifications do you have in your equipment quality?
A: Our manufacturing complies with the ISO9001 certification. Also, our systems have 42 leading industry credentials including CE and EACC, which means that they have passed
very strict international safety and performance requirements.
