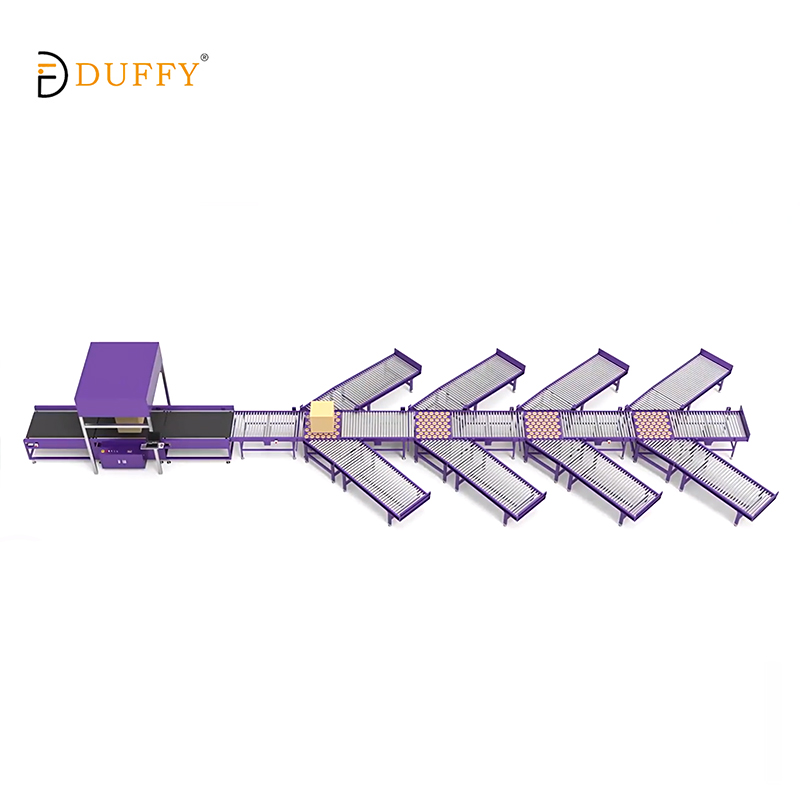

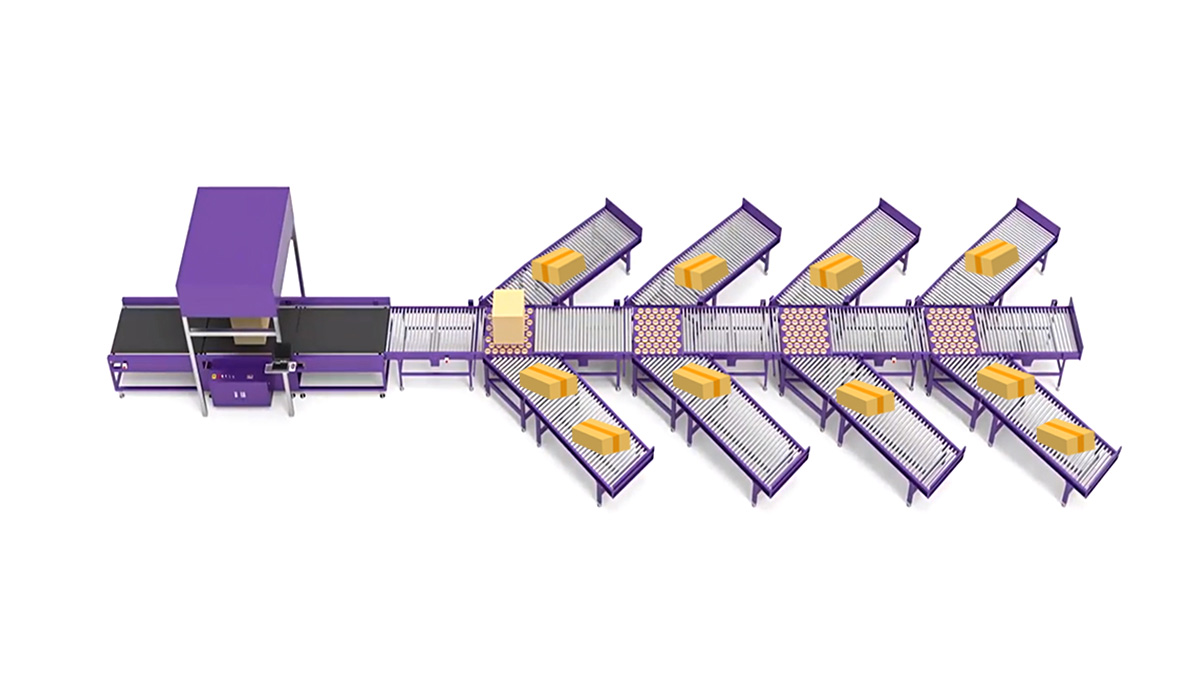

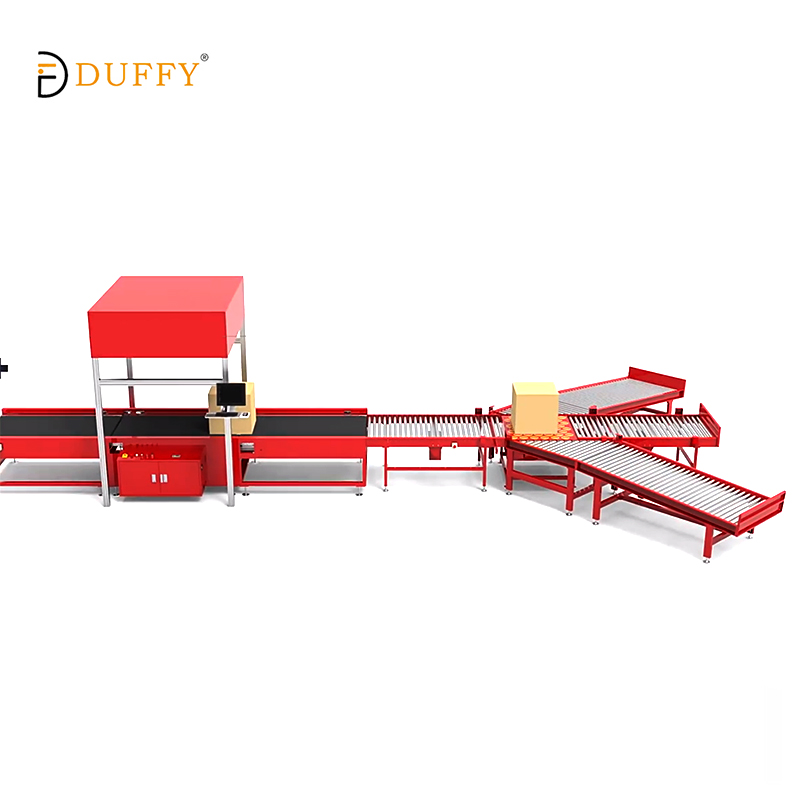

DWS-Max800 Pro

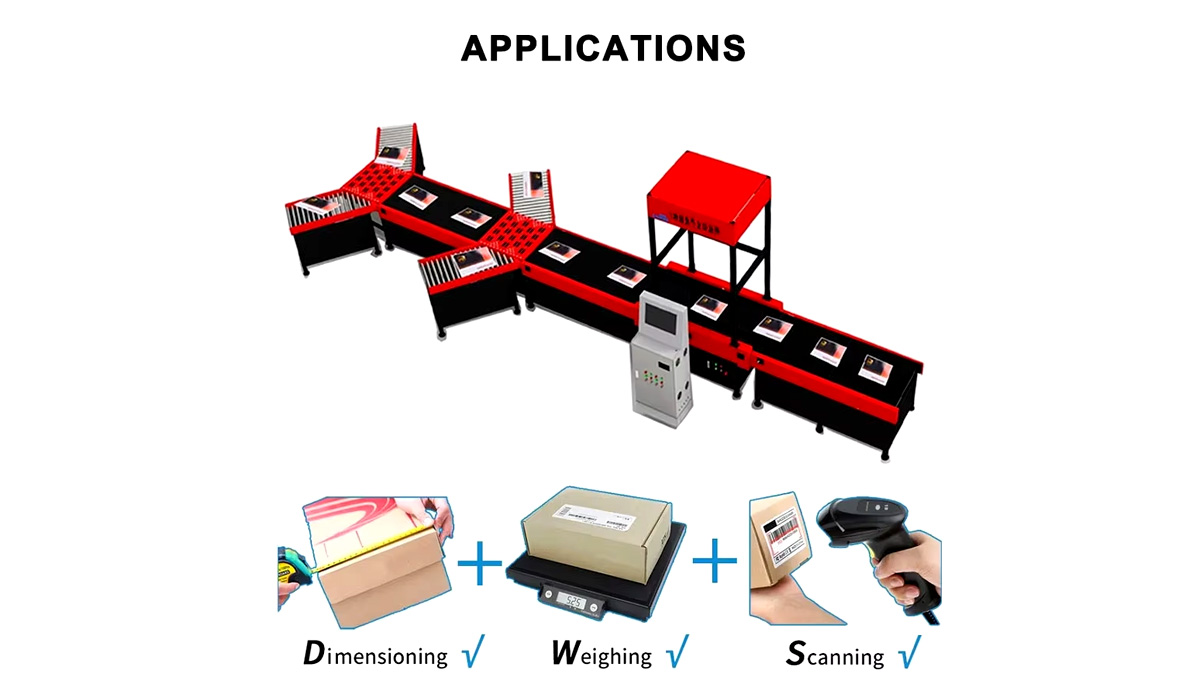

As a hybrid logistics solution, the DWS-Max800 Pro fashions warehouse operations through high-speed dimensioning, weighing, and sorting all in one. This system automates the data collection workflow and so gives high-volume distribution centers a trustworthy way to administrate parcel flow and enhance shipping accuracy.
By merging several manual stages into a single automated workflow, the DWS-Max800 Pro lets premises increase throughput and at the same time, reduce operational costs. For logisticians looking to improve data quality and system dependability in industrial settings, it serves as a reasonable option.
Key Features & Advantages
Capture of 3D High-Resolution Data
With state-of-the-art 3D vision recognition, the system behaves like a human expert searching parcel of different shapes and textures with the fewest are errors and redirected shipments.
Industrial Dynamic Weighing
This system is packed with the latest dynamic weighing at industrial speeds and still holds on to the accuracy standards of the industrial level without causing slowdowns on the conveyor line. This leads to smooth combining of weight information with the sorting process, thus making sure that the right volume of every package is billed in the course of high-volume operations.
AI While Powerful Intelligence Routing
At the heart of the system is AI based algorithms that online optimize routing and sorting logics. With instant data analyzing after acquisition the system directs parcels to their right destinations with very low delay thus dramatically increasing the overall throughput of modern warehouses.
Data and Analytics Integrated
The system is compatible for real-time data synchronization with major Warehouse Management Systems platforms and comes with a cloud-based performance dashboard. This modular architecture provides
configuration flexibility and at the same time gives managers detailed visibility into system health and operational efficiency throughout the entire facility.
| Item | Parameter Description |
|---|---|
| Name | Intelligent Scan Code Weighing Volume Measurement All-in-One Machine |
| Measurement Principle | Intelligent Light Curtain Measurement Technology |
| Weighing Accuracy | ±20-50g |
| Minimum Measurable Cargo Weight | 100g |
| Minimum Measurable Cargo Size Range | 50mm (L) × 50mm (W) × 50mm (H) |
| Maximum Measurable Cargo Weight | 50Kg |
| Maximum Measurable Cargo Size Range | 800mm (L) × 800mm (W) × 700mm (H) |
| Dimension Measurement Accuracy | For regular packages: 0-±5mm |
| Equipment Table Size | 1200mm × 800mm (Effective scale surface size) |
| Measurement Speed | 1 to 3 seconds per piece |
| Efficiency | 1200-2400 pieces/hour |
| Equipment Length | 2200mm |
| 1D Barcode Supported | Code128 / Code39 / Code93 / EAN / ITF25 / Codabar |
| 2D Barcode Supported | QR / Datamatrix |
| Barcode Resolution | 10mils / 0.254mm |
| Supported Object Shapes | Regular / Irregular |
| Storage Function | Supports storing photo of each cargo |
| External Support | Windows system; compatible with scanning, weighing, printing; manual data entry supported; provides data interface for system docking |
| Product Composition | Complete machine frame (baked paint or powder coating); Code reading module (industrial camera, industrial lens, data cable, power cable); Weighing module (display instrument, load cell, data cable, power adapter); Measurement module (measurement lens, data cable); Computer set (21.5-inch screen) |
| Usage Scenarios | New product inbound, recommended packaging, logistics warehouse management, truck precise scheduling, outbound freight settlement, etc. |
Factory Introduction
Optimize your warehouse and distribution efficiency with tailored intelligent logistics solutions from Duffy Machinery, a leading material handling specialist based in Fujian, China.Since our establishment in 2007, we have spent more than 10 years refining intelligent operational systems, with our core team offering 14 years of professional manufacturing experience for each customized project.
With a 35,000㎡ factory and 100+ skilled staff, Our factory is capable of producing 73,000 meters of roller conveyor lines and 2,000 incline conveyors annually; with a total of seven complete production lines, we ensure stable production and on-time delivery. We have obtained over 40 professional certifications and patents, including ISO9001, CE, EACC and national high-tech enterprise certification, which fully demonstrate our quality strength. Our solutions are widely recognized by global customers in the Middle East, South America, North America, Southeast Asia and other regions, supported by comprehensive after-sales service to ensure stable and efficient operation.
Factory Certificate
We're not just about providing top-notch hardware - we're about giving you complete peace of mind. With 42 prestigious industry certifications like ISO9001, CE, and EACC.
Customer concerns (FAQ)
Q1: What makes the DWS-Max800 Pro a class apart from the regular models?
A: The Max800 Pro comes with two high-resolution 3D scanners and improved AI algorithms. Thanks to this configuration, the machine can
work faster and deliver more accurate results at handling irregularly-shaped parcels in high-volume settings.
Q2: Is it possible for me to track the system's performance remotely?
A: The answer is yes. As a matter of fact, the DWS-Max800 Pro comes with a cloud-based analytics platform, so that administrators can track throughput, level of accuracy, and system health from any internet-enabled device/location.
Q3: Will the system be able to synchronize high-speed data effectively?
A: Through real-time API integration, the product syncs with major WMS and ERP platforms, enabling weight, dimensions, and tracking data to be
updated right after the parcels have passed through.
Q4: Is the system compatible with existing conveyor setups?
A: The system features a modular layout, allowing it to acclimate to various warehouse environments. Besides being incorporated into existing lines, it could also be used as a standalone sorting station.
Q5: Why is there a need for dual 3D scanners?
A: Unlike single-camera technology, get rid of "blind spots". This means that complicated or multi-sided objects will be more accurately
volumetric data as a result, manual re-scanning being reduced.
Q6:What does the system do to keep the accuracy level during 24/7 operations?
In addition to industrial-grade load cells and self-diagnostic program, the system regularly checks its own calibration and performance and informs the operators of the maintenance requirements before these affect the accuracy.
