Packaging conveying roller
Rollers of different materials

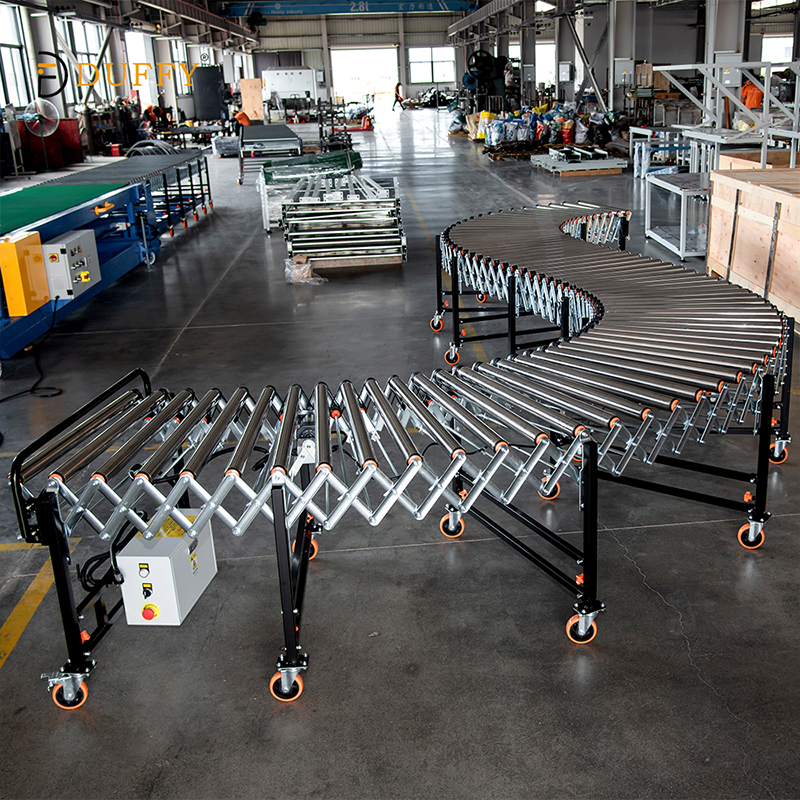

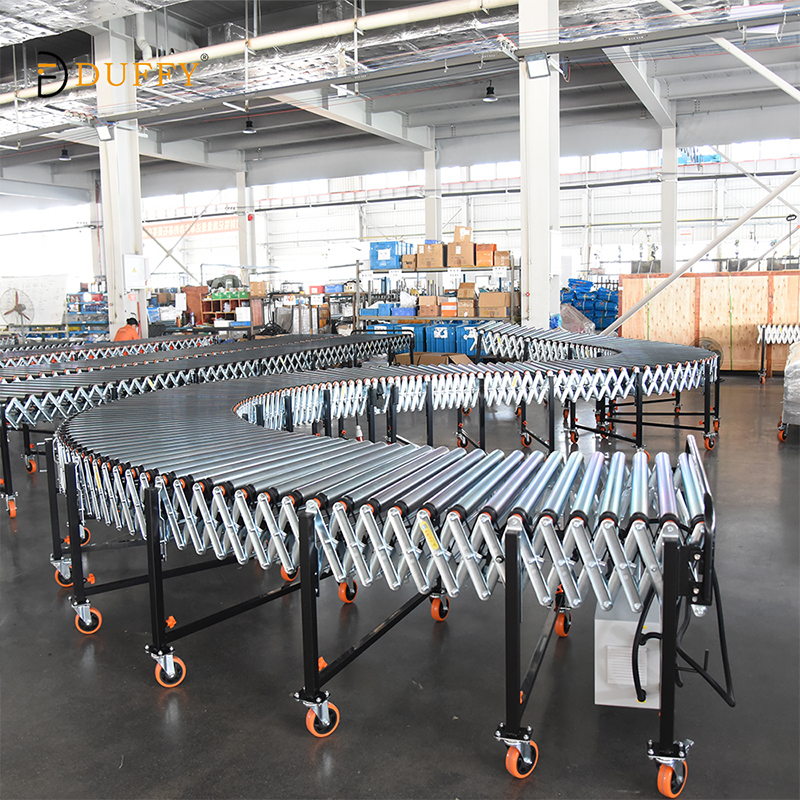

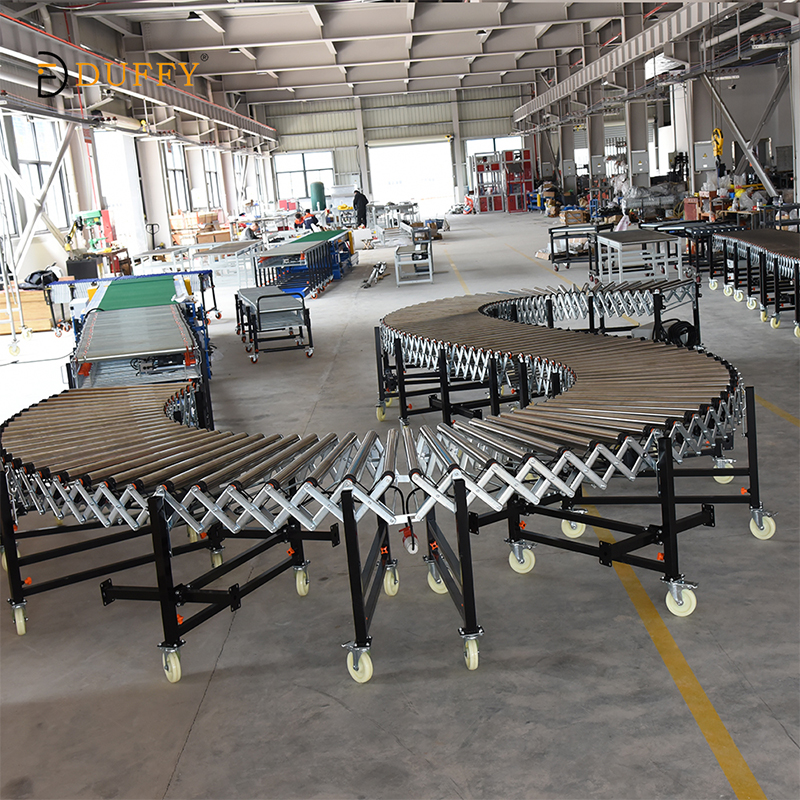

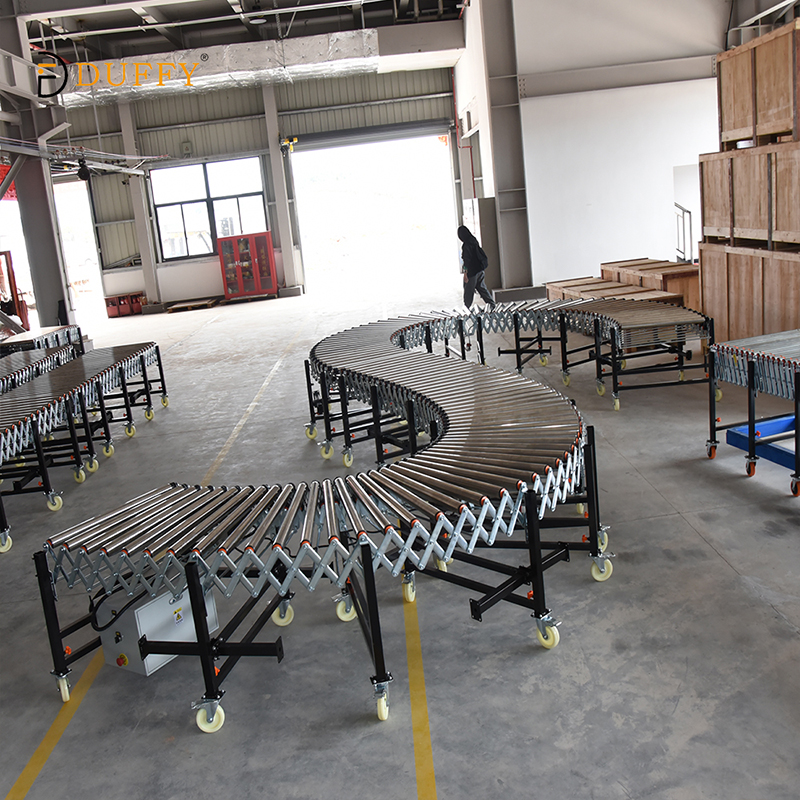

Duffy Machinery’s motorized telescopic roller conveyors are made to meet the tough requirements of today's warehouse logistics. Combining a strong carbon steel frame (which can be square or round) with top quality rollers and modern drive systems – including options for O-belt, Poly-V, or timing belt transmissions – these conveyor units offer a high-torque, virtually maintenance-free solution for loading and unloading.
Well thought-out for compactness and superior telescopic extension, our conveyors have been engineered to be able to go around obstacles and to be highly resistant to heavy impact while at the same time maintaining stability over the long period with the help of a simplified, low-maintenance mechanical structure. Having an excellent resistance to corrosion powder coating and highquality lockable swivel casters, Duffy's telescopic systems enable the change of manual bottlenecks into smooth, powered operational successes.
Duffy Machinery: Motorized Telescopic Conveyors Delivering High Performance for Seamless Automation
Expansion ratio: 530:1000/ 530:1250/ 740:2000
Transmission speed: 10 - 30 m/min
Product Specifications Table
| No. | Parameter | Unit | Specification |
| 1 | Frame Color | - | Black |
| 2 | Equipment Material | - | Carbon Steel |
| 3 | Overall Height | mm | Dual Rods: 600–850 |
| 4 | Total Weight | kg/unit | 35-80 |
| 5 | Unit Length | mm | 1000/1250/2000 |
| 6 | Extension Ratio | : | 530:1000/530:1250/740:2000 |
| 7 | Drive Direction | - | Bidirectional |
| 8 | Conveying Speed | - | 10-30m/min |
| 9 | Dynamic Load | kg/㎡ | 80 |
| 10 | Static Load | kg/㎡ | 120 |
| 11 | Minimum Turning Radius | mm | 1200 |
| 12 | Roller Length | mm | Standard 600, 800 |
| 13 | Roller Spacing | mm | 50/75/100 |
| 14 | Number of Rollers | pcs | 10/10/14 |
| 15 | Roller Diameter | mm | 50 |
| 16 | Roller Shaft Core | mm | 12 |
| 17 | Roller Wall Thickness | mm | ≥1.5 |
| 18 | Drive Roller Link Plate Thickness | mm | ≥3.5 (reinforced stamped, galvanized) |
| 19 | Drive Roller Surface Treatment | - | Carbon steel galvanized |
| 20 | Roller Poly-V Belt Sprocket Material | - | Steel 45# |
| 21 | Motor Wheel Material | - | Steel 45# |
| 22 | Guide Wheel Material | - | Steel 45# |
| 23 | Guide Wheel Mounting | - | Through Shaft |
| 24 | Frame Square Tube Steel | - | 35*35+30*30 |
| 25 | Frame Square Tube Wall Thickness | mm | ≥1.5 (black electrophoretic coating) |
| 26 | Side Cover | - | Not included |
| 27 | Support Legs | - | Square tube design / height adjustable |
| 28 | Casters | - | Swivel casters with brakes (front, middle, rear), others without brake |
| 29 | Caster Size Model | diameter/mm | Standard 4-inch |
| 30 | Drive Type | - | Poly-V Belt |
| 31 | Drive Belt Model | - | 3PJ |
| 32 | Emergency Stop Button | - | 1 |
| 33 | Rated Voltage | V | 220/380 |
| 34 | Reducer Brand / Power | W/unit | Brand: Dafei; Power: 120 |
| 35 | Inverter Model Spec | kw | 0.75/1.5/2.2 |
| 36 | Control Box | - | Wiring compliant and safe; entry/exit holes with insulation protection |
| 37 | Control Box Components | - | Chint and other domestic first-tier brands |
| 38 | Cable | - | Straight line |
| 39 | Equipment Wiring | - | Wiring compliant / power line with leakage protection |
| 40 | Packaging Material | - | PE stretch film wrapping |
| 41 | Whole Machine Warranty | months | 12 |
Factory Introduction
Optimize your warehouse and distribution efficiency with tailored intelligent logistics solutions from Duffy Machinery, a leading material handling specialist based in Fujian, China.Since our establishment in 2007, we have spent more than 10 years refining intelligent operational systems, with our core team offering 14 years of professional manufacturing experience for each customized project.
With a 35,000㎡ factory and 100+ skilled staff, Our factory is capable of producing 73,000 meters of roller conveyor lines and 2,000 incline conveyors annually; with a total of seven complete production lines, we ensure stable production and on-time delivery. We have obtained over 40 professional certifications and patents, including ISO9001, CE, EACC and national high-tech enterprise certification, which fully demonstrate our quality strength. Our solutions are widely recognized by global customers in the Middle East, South America, North America, Southeast Asia and other regions, supported by comprehensive after-sales service to ensure stable and efficient operation.
Multi-industry application
1
2
3
4
In the case of heavy loads such as metal plates or machinery parts, the goods are first placed on the conveyor and then the length of the line is adjusted according to the size of the goods, finally permitting stable transport to the storage area.
Value: Avoid manual handling of heavy loads, lessen the physical work, eliminate the chance of work-related injuries, and secure the safe and efficient movement of materials.
Factory Certificate
We have 42 authoritative industry certifications, including ISO9001, CE, and EACC, which ensure that our products meet international safety and quality standards.
Our engineering team is made up of 18 highly skilled professionals who work in R&D, design, on-site installation, and after-sales support. They are able to provide
technical support at any stage of the project. We provide a comprehensive one-stop service ranging from initial technical blueprint design to long-term post-project
maintenance, which not only streamlines your project process but also reduces operational hassle.
Customer concerns (FAQ)
1. What is the maximum load rating of your rollers and complete conveyor systems?
We have two levels of performance on offer: our Standard rollers can bear 100kg/㎡, whereas our Heavy-Duty rollers (1.5mm reinforced frames) can carry up to
150kg/㎡. Each roller is subjected to a 72-hour full-load continuous stress test to make sure it meets the highest standards of industrial reliability. We would be happy to offer you a tailored technical recommendation if you would share with us your exact cargo weight.
2. Do you provide custom sizing and specific packaging for assembly?
Absolutely! We customize products fully. Our width ranges from 300mm to 1500mm, and the lengths can be modular to fit any floor plan. We deliver our kits as
complete assemblies, and the "no-welding" design allows two people to finish installation within only a few hours.
3. What elements affect pricing and are there bulk incentives?
Prices depend on various factors such as type of material, load capability, dimensions, and special accessories. To facilitate large projects, we offer
5%-15% discounts for orders exceeding 100 meters and free site layout planning services.
4. What is the Minimum Order Quantity (MOQ)?
Our minimum order quantity for roller conveyor systems is 10 meters, which is appropriate for small-scale as well as full-facility distribution projects.
5. Which shipping methods can I use to ship international orders?
We do worldwide transportation with these logistics: Sea Freight (FCL/LCL), Cross-border Land Transport, and Air Freight of urgent spare parts or smaller components.
6. How do you prepare the goods for shipping abroad?
We have a very reliable triple protection system for shipping: the first layer is PE stretch film, then metal or wooden supporting frames, and the outer layer is made of ISPM-15 certified fumigation-free wooden crates.
7. What methods of payment do you accept?
We receive T/T (Telegraphic Transfer) and UnionPay as safe payment ways for all international business cooperation.
