Packaging conveying roller
Rollers of different materials

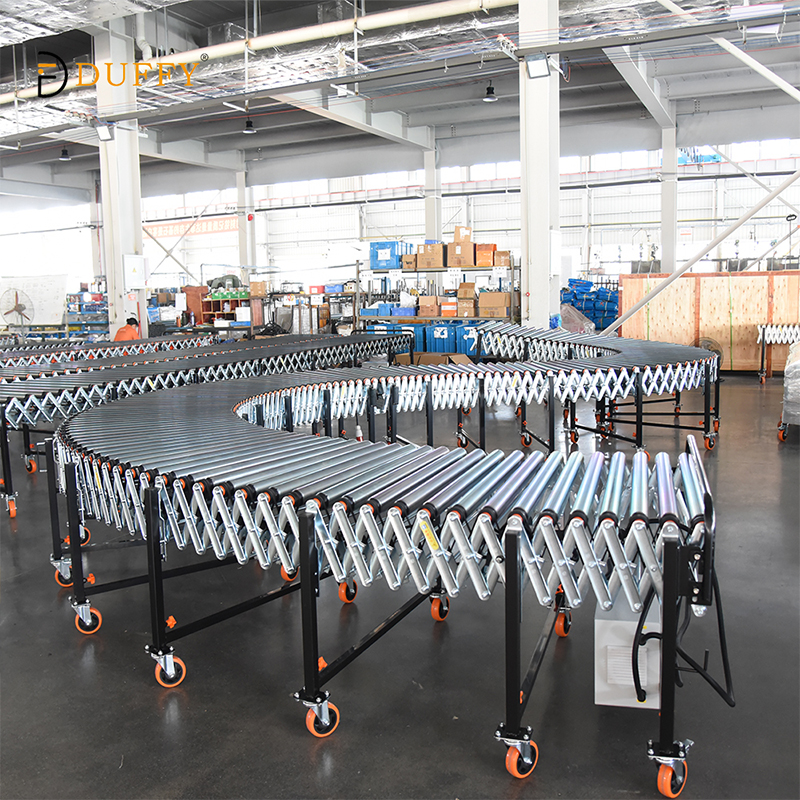

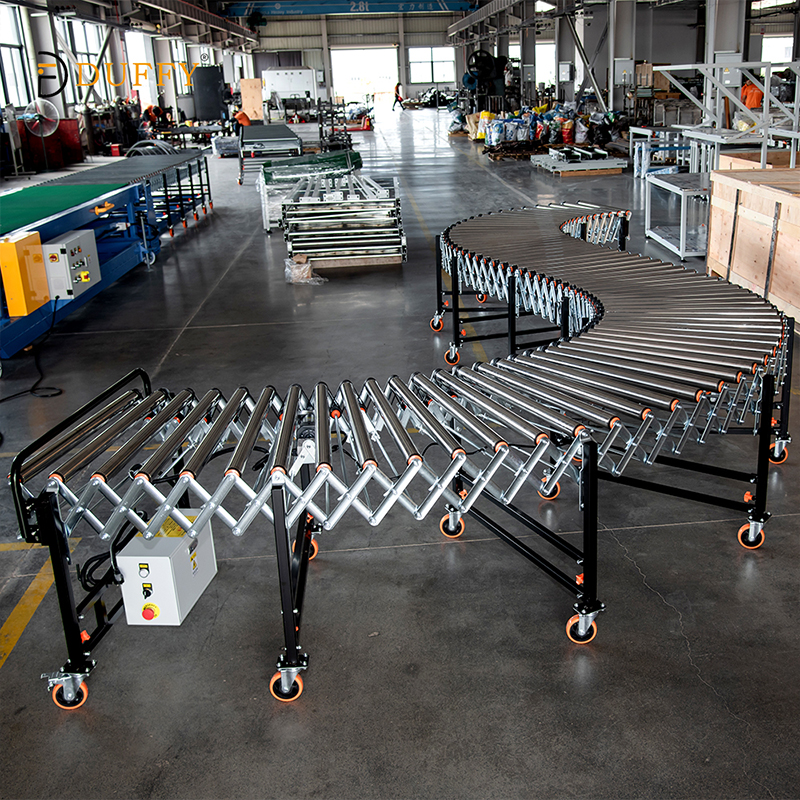

Formed from a sturdy frame, high quality rollers, motor and drive system, this type of machinery employs motorized roller rotation to move items in an efficient manner according to production workflows. The main merits are the small footprint, excellent extendibility, flexibility in direction changes, the ability to avoid turning obstacles, a high resistance to shock loads, a simple structure, ease of maintenance and dependability.
The basic material of the frame is standard carbon steel (square/round tubes) along with high-quality and easily lockable casters, all having a powder-coated finish. The choices for the drive are O-belt, poly-V belt, and timing belt; all these can be customized fully to the needs of the customer.
Expansion ratio: 530:1000/ 530:1250/ 740:2000
Transmission speed: 10 - 30 m/min
Product Specifications Table
| No. | Parameter | Unit | Specification |
| 1 | Frame Color | - | Black |
| 2 | Equipment Material | - | Carbon Steel |
| 3 | Overall Height | mm | Dual Rods: 600–850 |
| 4 | Total Weight | kg/unit | 35-80 |
| 5 | Unit Length | mm | 1000/1250/2000 |
| 6 | Extension Ratio | : | 530:1000/530:1250/740:2000 |
| 7 | Drive Direction | - | Bidirectional |
| 8 | Conveying Speed | - | 10-30m/min |
| 9 | Dynamic Load | kg/㎡ | 80 |
| 10 | Static Load | kg/㎡ | 120 |
| 11 | Minimum Turning Radius | mm | 1200 |
| 12 | Roller Length | mm | Standard 600, 800 |
| 13 | Roller Spacing | mm | 50/75/100 |
| 14 | Number of Rollers | pcs | 10/10/14 |
| 15 | Roller Diameter | mm | 50 |
| 16 | Roller Shaft Core | mm | 12 |
| 17 | Roller Wall Thickness | mm | ≥1.5 |
| 18 | Drive Roller Link Plate Thickness | mm | ≥3.5 (reinforced stamped, galvanized) |
| 19 | Drive Roller Surface Treatment | - | Carbon steel galvanized |
| 20 | Roller Poly-V Belt Sprocket Material | - | Steel 45# |
| 21 | Motor Wheel Material | - | Steel 45# |
| 22 | Guide Wheel Material | - | Steel 45# |
| 23 | Guide Wheel Mounting | - | Through Shaft |
| 24 | Frame Square Tube Steel | - | 35*35+30*30 |
| 25 | Frame Square Tube Wall Thickness | mm | ≥1.5 (black electrophoretic coating) |
| 26 | Side Cover | - | Not included |
| 27 | Support Legs | - | Square tube design / height adjustable |
| 28 | Casters | - | Swivel casters with brakes (front, middle, rear), others without brake |
| 29 | Caster Size Model | diameter/mm | Standard 4-inch |
| 30 | Drive Type | - | Poly-V Belt |
| 31 | Drive Belt Model | - | 3PJ |
| 32 | Emergency Stop Button | - | 1 |
| 33 | Rated Voltage | V | 220/380 |
| 34 | Reducer Brand / Power | W/unit | Brand: Dafei; Power: 120 |
| 35 | Inverter Model Spec | kw | 0.75/1.5/2.2 |
| 36 | Control Box | - | Wiring compliant and safe; entry/exit holes with insulation protection |
| 37 | Control Box Components | - | Chint and other domestic first-tier brands |
| 38 | Cable | - | Straight line |
| 39 | Equipment Wiring | - | Wiring compliant / power line with leakage protection |
| 40 | Packaging Material | - | PE stretch film wrapping |
| 41 | Whole Machine Warranty | months | 12 |
Factory Introduction
Optimize your warehouse and distribution efficiency with tailored intelligent logistics solutions from Duffy Machinery, a leading material handling specialist based in Fujian, China.Since our establishment in 2007, we have spent more than 10 years refining intelligent operational systems, with our core team offering 14 years of professional manufacturing experience for each customized project.
With a 35,000㎡ factory and 100+ skilled staff, Our factory is capable of producing 73,000 meters of roller conveyor lines and 2,000 incline conveyors annually; with a total of seven complete production lines, we ensure stable production and on-time delivery. We have obtained over 40 professional certifications and patents, including ISO9001, CE, EACC and national high-tech enterprise certification, which fully demonstrate our quality strength. Our solutions are widely recognized by global customers in the Middle East, South America, North America, Southeast Asia and other regions, supported by comprehensive after-sales service to ensure stable and efficient operation.
Factory Certificate
We hold 42 authoritative industry certifications, including ISO9001, CE, and EACC, ensuring our products fully meet international safety standards and quality norms.
A reputed fire door manufacturing company in Jinhua, Zhejiang, having fire safety equipment production as one of their major business domains, faced material transport bottlenecks when the company started receiving more orders. The production of fire doors requires heavy materials such as metal sheets and fireproof fillers; traditional transportation methods could not cope with the production rhythms causing materials to be backed up, shortage of production lines, and delay of deliveries.
The first choice for the company to resolve the problem was Zhangzhou Duffy Machinery\'s reciprocating vertical conveyor. Due to its strong build and stable load-bearing capability, the conveyor effortlessly links the cutting, assembly, inspection, and other workshops while changing the conveying frequency in line with production requirements.
Resulting from the installation of the system, the heavy material transportation operation became nearly 30% more effiient, and production stops due to material shortages decreased by a little over 80%. The company achieved material transfer "zero waiting," thereby providing a robust hardware foundation for capacity development. The partnership clearly reflects Duffy's expertise in heavy material conveying and its contribution to upgrading manufacturing capabilities.
Customer concerns (FAQ)
1. What load can a single roller carry and what is the maximum for the whole track?
Standard: 100kg/㎡; Heavy-duty (1.5mm wall): 150kg/㎡. Each roller is tested with a full 72-hour load. You can tell me your product weight for a more accurate recommendation.
2. Is it possible to change the width/length? Can the packaging be suitable for self-assembly?
You can set the dimensions you want (width 300–1500mm, modular length). The equipment will be delivered as full assembly kits; with just 2 workers, assembly can be completed in a few hours (no welding required).
3. What are the factors that influence the price? Are there any discounts for large quantities?
The price is determined by materials, load capacity, dimensions, and accessories. There will be a 5–15% discount if you order more than 100 meters. We will provide you a free layout design.
4. What is the minimum order quantity for conveyor?
10 Meters (roller conveyors).
5. Which shipping methods do you provide?
Sea (FCL/LCL), Land (cross-border), Air (urgent parts/small components).
6. How do you package the equipment for international shipping?
PE stretch film (inner) + metal/wood stands (support) + ISPM-15 fumigation-free wooden crates (outer).
7. What types of payment do you accept?
T/T (Telegraphic Transfer) and UnionPay
