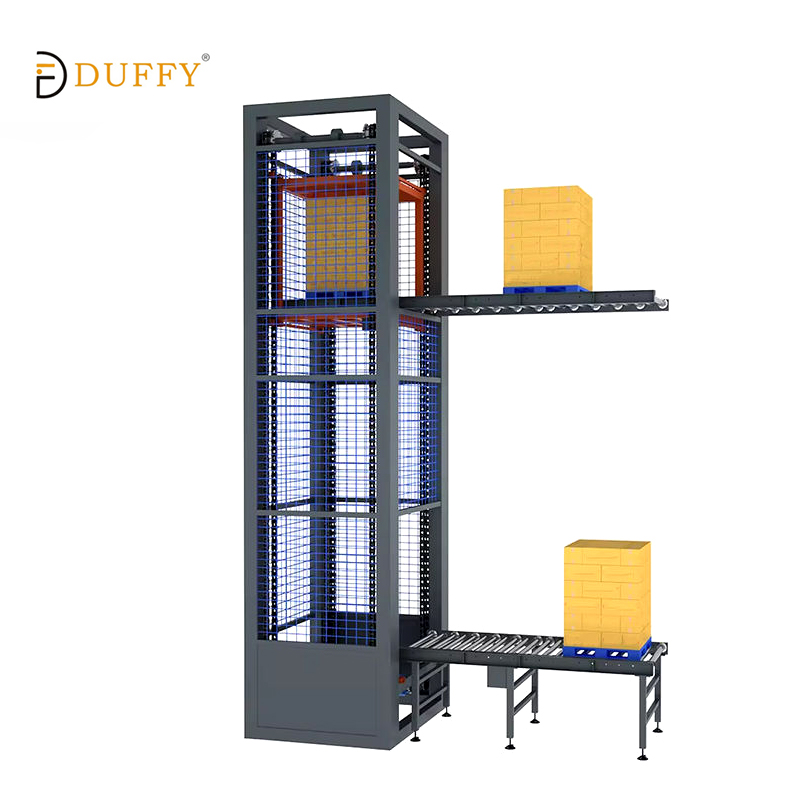

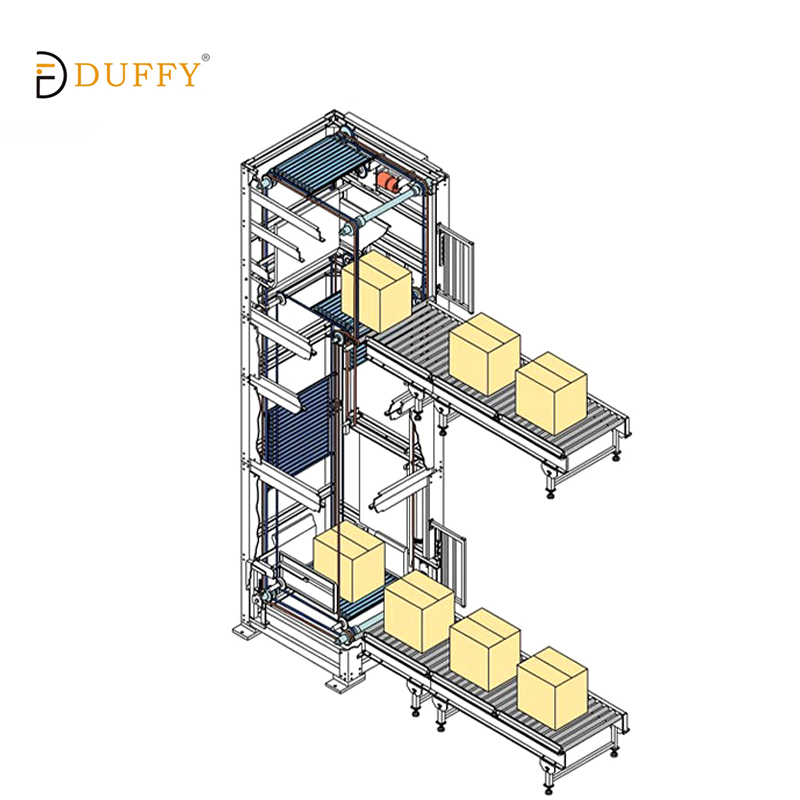

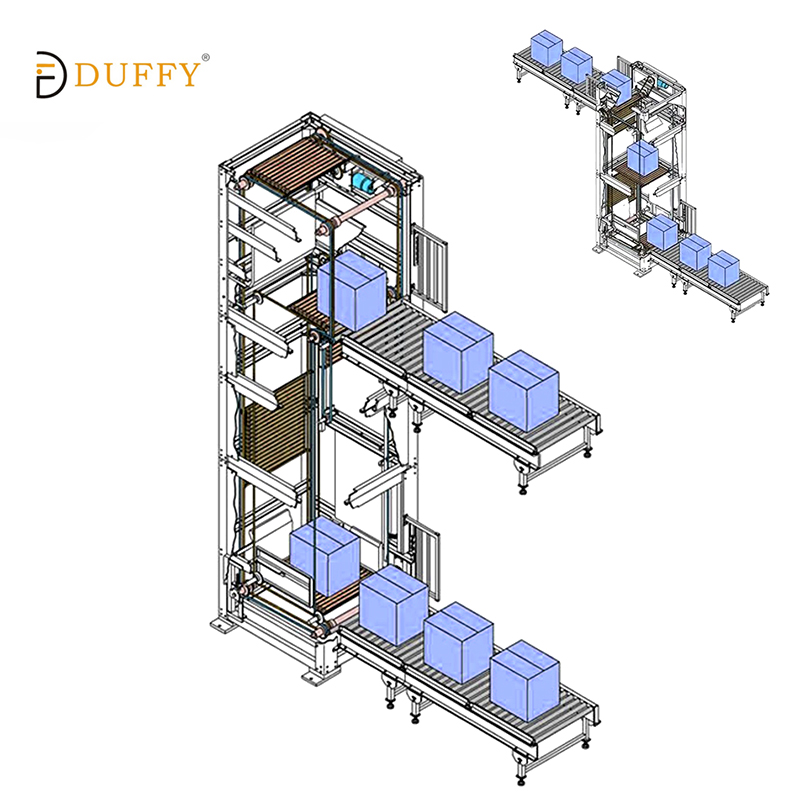

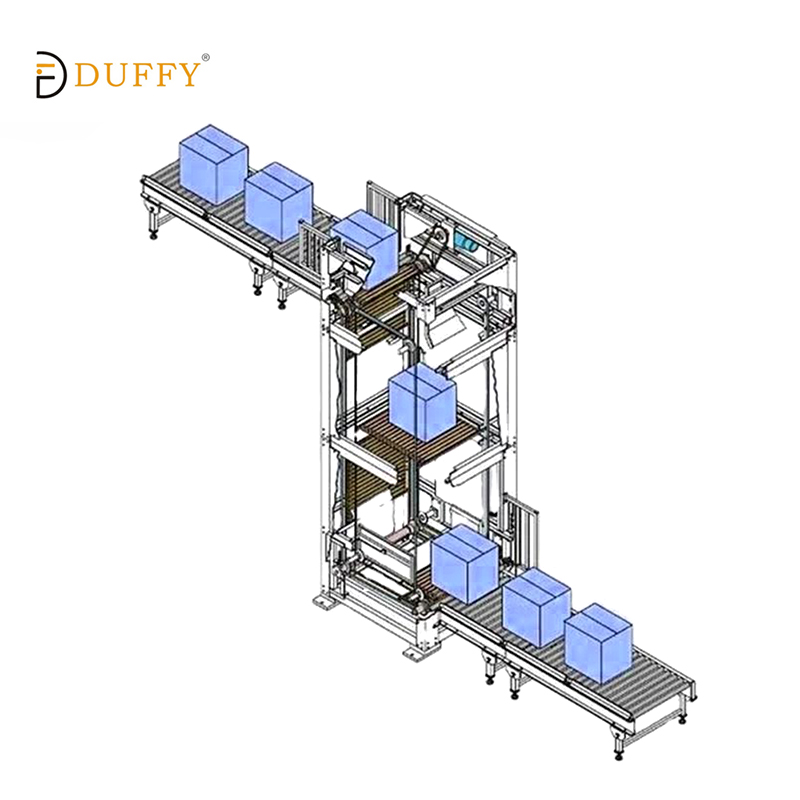

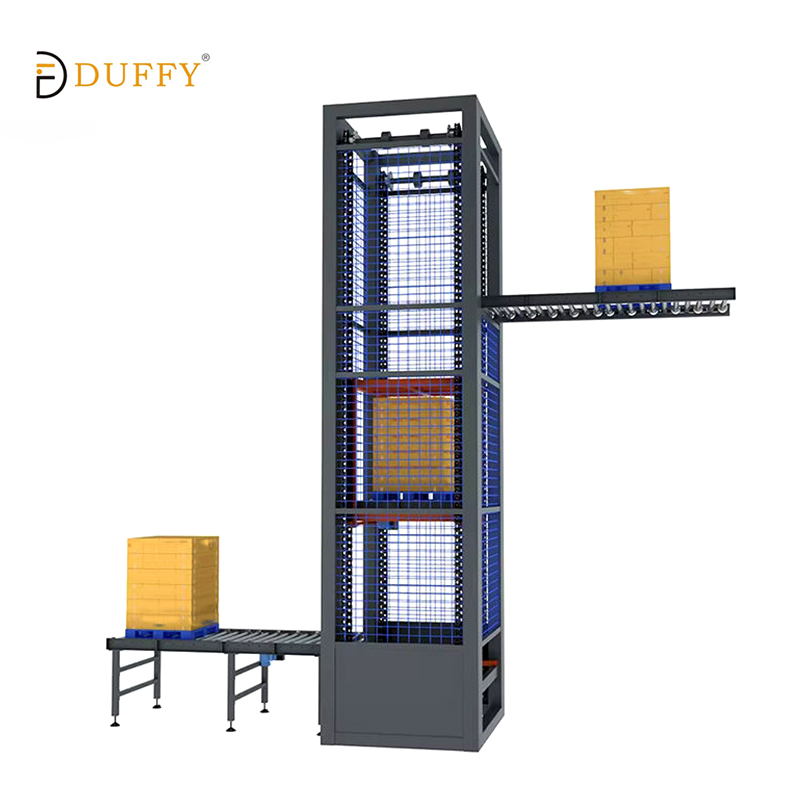

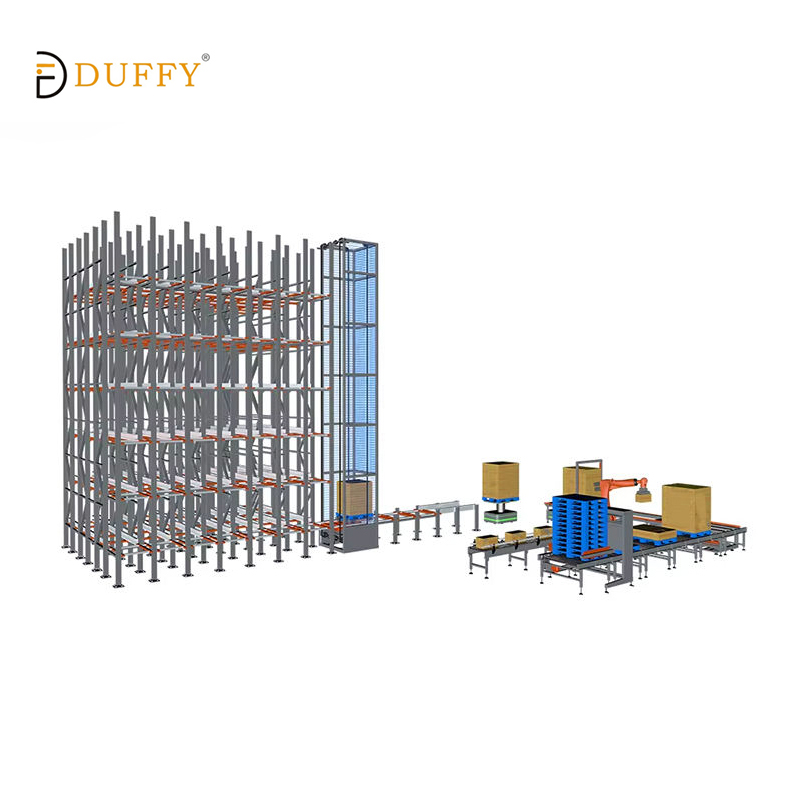

CVL-300 Continuous Vertical Lift Conveyor
The CVL-300 Continuous Vertical Lift Conveyor offers a quick vertical transport solution ideal for continuously high-volume material handling facilities. Compared with reciprocating lifts that shift one carriage back and forth, the CVL-300 employs a circulating platform concept which makes it possible to transport several items simultaneously. This "endless loop" system ensures a non-stop delivery of goods and therefore is a perfect option for the most demanding sorting centers and production lines where every second of throughput is vital.
Without the downtime of return cycles, the system effectively facilitates transfer between various floors while at the same time maximizes operational uptime and completely removes bottlenecks at floor-to-floor junctions. Besides its small vertical footprint and smooth, synchronized movement, it guarantees that parcels, totes, and cartons are handled both rapidly and safely thus enabling logistics managers to reach higher processing rates within a limited space.
Key Features & Advantages
Continuous and uninterrupted operation
The CVL-300 has been engineered so that the lift’s “waiting time” usually present with standard reciprocating lifts gets completely eliminated. Through the operation of a continuous loop comprising several carrying platforms, it is possible to ensure vertical transport at all times without interruption. With this architecture based on flow-through, there will be no need for your horizontal conveyor lines to halt because they are awaiting the carriage’s return, thereby preserving a steady rhythm without any interruptions which is vital for fast sorting and distribution centers.
Optimal use of vertical space
The CVL-300 is specifically designed to work efficiently in tight and cluttered industrial environments by carrying out the vertical movement of goods within a very small footprint of structural mast. Thus, the set-up does away with inclined belts that are lengthy and require a lot of space or with large spiral chutes. By keeping the ground-level just a small area, the valuable floor space can be utilized for other production machines, designated pathways for forklifts, or storage racks resulting in the maximization of the cubic usefulness of your facility.
High throughput capacity with dual loads
Intelligent Monitoring and Flexibility of Expansion
| No. | Specification Name | Details |
|---|---|---|
| 1 | Model | Continuous Elevator --001 |
| Infeed & Outfeed Type | C-Type | |
| Main Frame | Made of 60×60×4.0mm square steel tube, fully welded. | |
| Main Drive System | 2.2 kW motor from Taibang or equivalent brand. | |
| Main Chain | Domestic high-quality 12A chain from Donghua. | |
| Pallet | Pallet made of 30×15mm special pallet chain plate. | |
| Pallet Quantity & Capacity | 10 pallets; Capacity: 7.5 boxes per second, up to 500 boxes/hour. | |
| Lifting Height | H = 7000~10700 mm; Stroke: 10000 mm. | |
| Internal Chain | High-molecular PE + metal plate fixed, excellent quiet performance and high wear resistance. | |
| Material & Surface Treatment | All steel materials use carbon steel with baked paint finish. Color: To be confirmed. | |
| Enclosure | Carbon steel + mesh (baked paint treatment). | |
| Bearing | TR or FYH brand. | |
| 2 | Electrical Control System | 1. Electrical cabinet and control panel: A3 steel with baked paint finish. 2. PLC: Huichuan / Xinje or equivalent domestic brand. 3. Inverter: Huichuan / Shilin or equivalent domestic brand. 4. Contactors and other low-voltage components: Chint / Delixi or equivalent brand. 5. Photoelectric switches: SICK / Omron or equivalent brand. 6. Circuit breakers, motor protectors, contactors and other general components: Chint / Delixi or equivalent brand. 7. Touch screen is adopted. |
