Packaging conveying roller

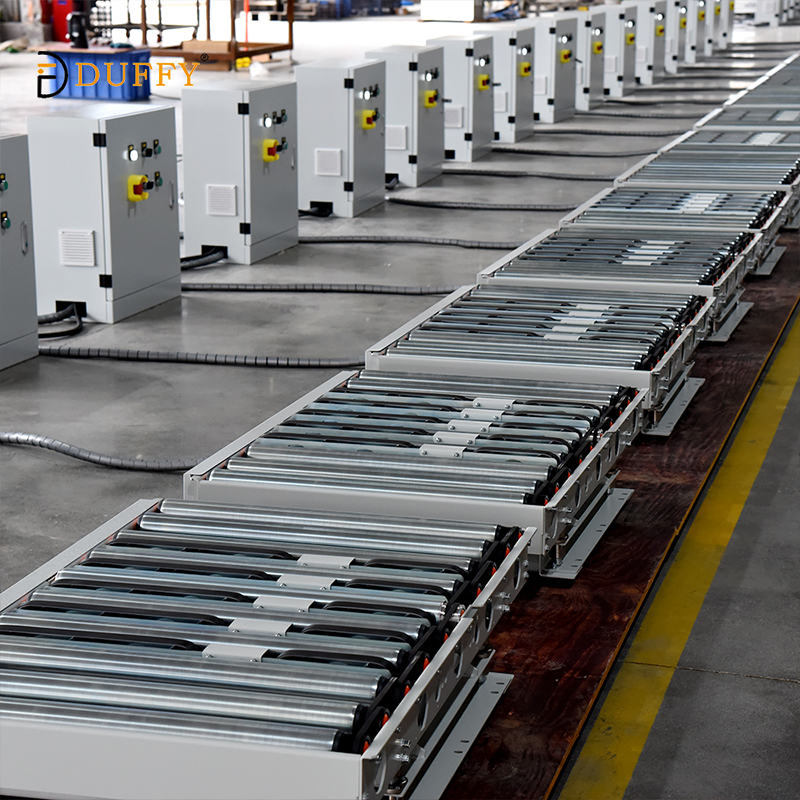

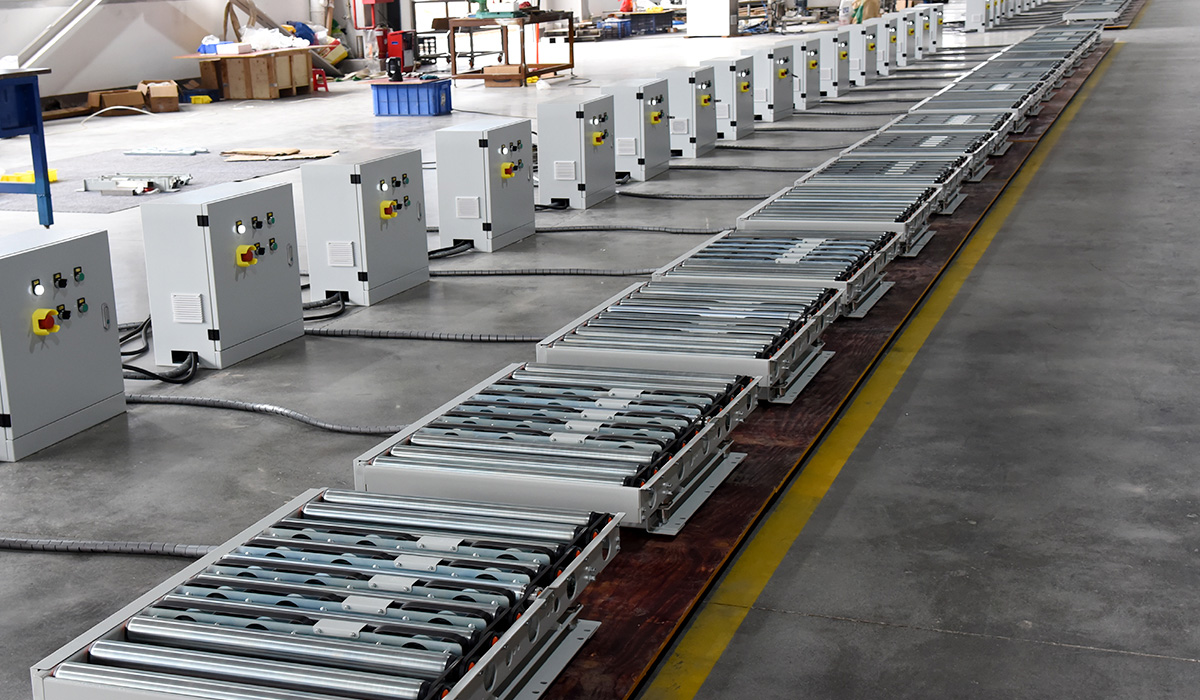

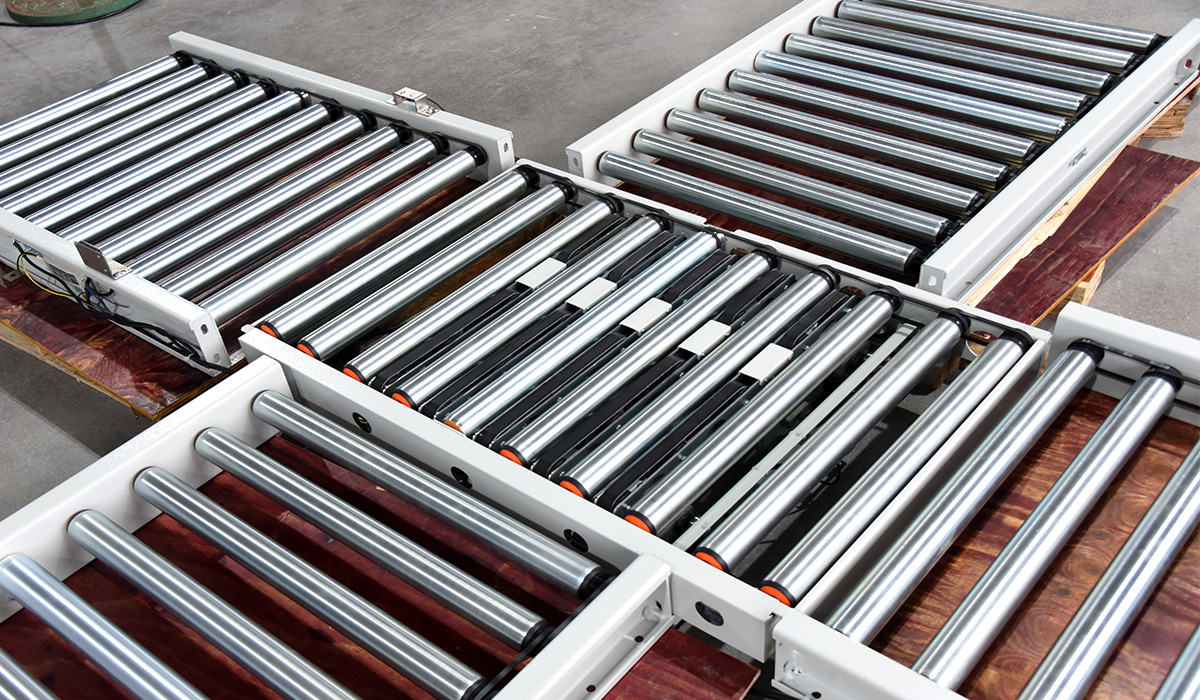

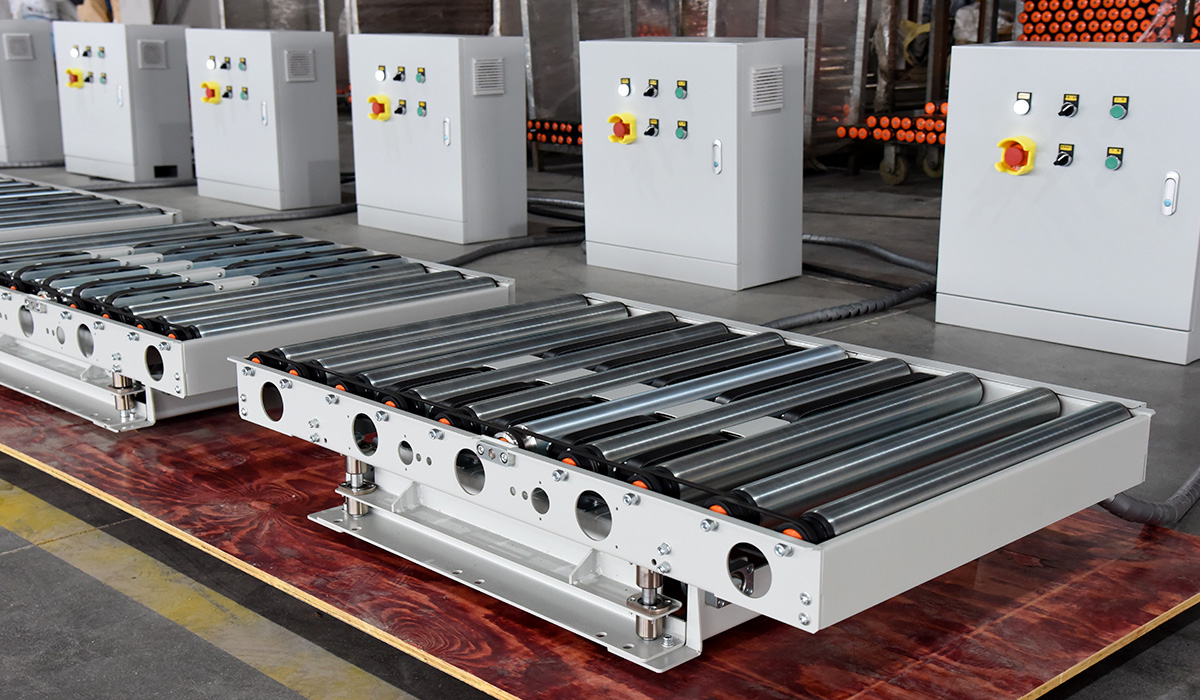

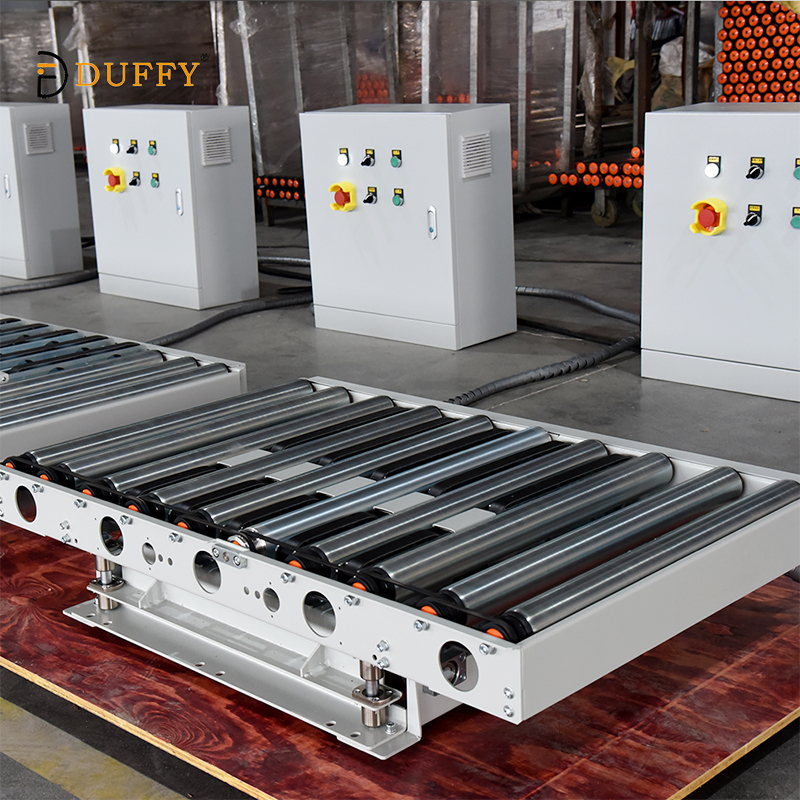

PPS-150 Portable pop up roller conveyor
The PPS-150 Portable Pop-up Roller Conveyor combines high-quality sorting capability with the portability of a mobile unit for facilities where performance is paramount, but flexibility is also a key factor in the setup. This equipment is industrial strength but at the same time very portable keeping handling and troubleshooting operations very simple and quick.
It is a perfect fit in time-changing scenarios that cannot afford going permanent. Thanks to its ability to visualize multi-directional changes while still being without fixed infrastructure installation, the PPS-150 keeps a high output on throughput as well as allows for efficient floor space planning.
Key Features & Advantages
portable pop-up sorter, mobile 90-degree transfer, flexible roller conveyor, and temporary warehouse automation.
This 90 Degree roller conveyor is also highly effective for:
Temporary warehouse sorting activities
Handling materials at trade shows and exhibitions
Seasonal expansion of fulfillment centers
Mobile parcel sorting stations
Emergency logistics operations
Military and disaster relief deployments
| No. | Parameter Name | Parameter |
|---|---|---|
| 1 | Rated Load | < 50kg |
| 2 | Conveyor Table Height | 210 |
| 3 | Roller Conveyor Direction / Speed | 10~90m/min |
| 4 | Belt Conveyor Direction / Speed | 10~90m/min |
| 5 | Equipment Frame (Square Tube) Steel Wall Thickness | 2.0 |
| 6 | Roller Specification | 50mm |
| 7 | Roller Spacing (mm) | 105mm |
| 8 | Roller Material | 201 Stainless Steel |
| 9 | Number of Rollers | 5 |
| 10 | Number of Belt Rows | 4 |
| 11 | Equipment Power | Motor + Electric Roller |
| 12 | Guide Guardrail (Adjustable) | Aluminum alloy or folded plate guide bar + Nylon |
| 13 | Equipment Coating | Epoxy resin powder electrostatic spray, thickness 80~100μm |
| 14 | Equipment Noise | < 70db |
| 15 | Sorting Efficiency | 1200~1800 pieces/hour |
| 16 | Installation Method | Suspended or floor-mounted |
| 17 | Motor Brand | Jingyan / SEW / Shengpai |
Factory Introduction
Optimize your warehouse and distribution efficiency with tailored intelligent logistics solutions from Duffy Machinery, a leading material handling specialist based in Fujian, China.Since our establishment in 2007, we have spent more than 10 years refining intelligent operational systems, with our core team offering 14 years of professional manufacturing experience for each customized project.
With a 35,000㎡ factory and 100+ skilled staff, Our factory is capable of producing 73,000 meters of roller conveyor lines and 2,000 incline conveyors annually; with a total of seven complete production lines, we ensure stable production and on-time delivery. We have obtained over 40 professional certifications and patents, including ISO9001, CE, EACC and national high-tech enterprise certification, which fully demonstrate our quality strength. Our solutions are widely recognized by global customers in the Middle East, South America, North America, Southeast Asia and other regions, supported by comprehensive after-sales service to ensure stable and efficient operation.
Factory Certificate
We're not just about providing top-notch hardware - we're about giving you complete peace of mind. With 42 prestigious industry certifications like ISO9001, CE, and EACC, you can trust that every component of your project meets the highest safety and quality standards.
Customer concerns (FAQ)
Q1: Can you please tell me the maximum sorting capacity of your robotic systems?
A: Our robots are capable of sorting 3,000 to 10,000 parcels per hour, depending on the configuration. These robots are intended to operate in high-volume environments where high-speed accuracy is a crucial parameter of the performance.
Q2: Is it possible to customize the conveyor systems so that they fit into a specific warehouse layout?
A: Of course, as the manufacturer, we provide modular solutions for our customers. We include telescopic conveyors and curved roller conveyor lines that provide greater efficiency in your existing floor space and workflow.
Q3: How does the equipment protect fragile or delicate items?
A: We combine state-of-the-art digital sensors with soft latex touch diverters and polyurethane rollers. This combination controls the impact and flow of items during sorting to prevent any damage to their surfaces.
Q4: Does Duffy Machinery offer international installation support?
A: We support our international customers by providing detailed technical papers and video instructions. When it comes to big projects, we are ready to send engineering teams to help with the installation and testing on-site.
Q5: What quality certifications does your equipment hold?
A: We hold an ISO9001 certificate for our factory while our products are in compliance with CE and EACC standards. Besides these, we continually maintain a total of 42 industry certifications so that our components keep meeting globally recognized safety and quality
standards.
Q6: Are the 90-degree transfer units easy to integrate into existing lines?
A: We have designed our EPT-200 line using quick-connect technology. This makes the installation processes smoother and quicker thereby facilitating modern, automated environmen ts with minimal downtimes.
Q7: How do your systems handle energy efficiency during 24/7 operations?
A: Our drives are equipped with intelligent energy management features that enable them to lower power usage when the machine is not operating, but still meet strict requirements of continuous industrial use without compromising on performance.
Q8: What is the annual production capacity for your conveyor rollers?
A: Annually, through our 25-mu production base, we manufacture more than 800,000 rollers. With such a high volume of output, we can easily ensure a consistent supply not only for new projects but also for maintenance and repair purposes.
