Packaging conveying roller

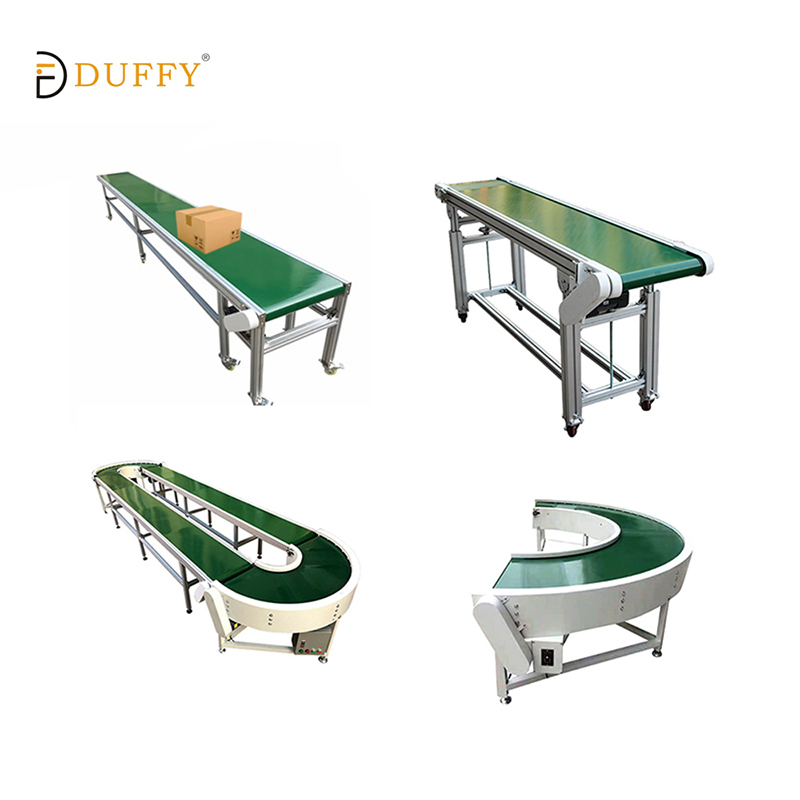

Intelligent Sorting Factory Conveyor Belt System
Key Features & Advantages
Precision & Accuracy: AI-Driven Recognition
Flexibility: Modular and Adaptive Design
It has a modular "plug-and-play" structure that makes fitting it into any warehouse layout possible. Also, as far as the system is concerned its scaling is a breeze—you simply add or change zones as your business expands or your product types are altered, which, in fact, turns the system into a very versatile long-term investment.
Energy Efficiency: Smart Power Management
The ISF-800 incorporates an intelligent energy management system, unlike older systems that operate at full power irrespective of the load. It employs direct-drive technology to supply power only to the zones in use thereby lowering electricity bills and simultaneously reducing the wear and tear of mechanical parts during slow phases
Future-Ready: Continuous Software Evolution
| No. | Parameter | Specification |
|---|---|---|
| 1 | Retract Length | 6000 mm |
| 2 | Extension Length | 12000 mm |
| 3 | Total Length | 18000 mm |
| 4 | Conveyor Height | 800 mm |
| 5 | Inclination Angle | 0–5 degrees (with hydraulic adjustment) |
| 6 | Loading Capacity | 50 kg/m |
| 7 | Conveyor Speed (with frequency converter) | 10–40 m/min |
| 8 | Belt Width | 800 mm |
| 9 | Working Direction | Forward and backward (reversible) |
| 10 | Belt Drive Motor | 3 kW |
| 11 | Telescopic Motor (with brake function) | 1.1 kW |
| 12 | Conveyor Weight | 2.8 T |
| 13 | Motor Brand | SEW |
Factory Introduction
Optimize your warehouse and distribution efficiency with tailored intelligent logistics solutions from Duffy Machinery, a leading material handling specialist based in Fujian, China.Since our establishment in 2007,
we have spent more than 10 years refining intelligent operational systems, with our core team offering 14 years of professional manufacturing experience for each customized project.
With a 35,000㎡ factory and 100+ skilled staff, Our factory is capable of producing 73,000 meters of roller conveyor lines and 2,000 incline conveyors annually; with a total of seven complete production lines,
we ensure stable production and on-time delivery. We have obtained over 40 professional certifications and patents, including ISO9001, CE, EACC and national high-tech enterprise certification,
which fully demonstrate our quality strength. Our solutions are widelyrecognized by global customers in the Middle East, South America, North America, Southeast Asia and other regions, supported by comprehensive after-sales service to ensure stable and efficient operation.
Factory Certificate
We're not just about providing top-notch hardware - we're about giving you complete peace of mind. With 42 prestigious industry certifications like ISO9001, CE.
Customer concerns (FAQ)
Q1: Does AI sorting give you accurate results?
A: The system uses deep learning algorithms and high-resolution vision sensors, which have enabled it to accurately identify barcodes, shapes, and labels almost
perfectly. It essentially removes human errors which are common in manual sorting.
Q2: Is the system capable of dealing with different types of packaging at the same time?
A: Absolutely. The modular flat belt has been engineered in such a way that it can carry heavy cardboard boxes, light polybags, and also
irregularly-shaped parcels without any of them slipping or getting stuck.
Q3: What if a mechanical issue arises?
A: The system is equipped with self-diagnostics capabilities. It keeps track of its condition in real-time and will notify your personnel of
possible problems—such as a depleted belt or motor heating—well before a breakdown occurs.
Q4: Will be it hard to work it into my existing WMS?
A: Actually, it's very easy. The ISF-800 comes with an open interface, which makes it basically "plug-and-play" with most standard Warehouse Management Systems (WMS) and ERPs so that data is seamlessly synced.
Q5: What does the "energy-efficient" mode do?
A: Rather than having the entire line run all the time, the system makes use of smart sensors to monitor the package flow. It only
activates the specific zones that are necessary at that time which, of course, also greatly reduces your electricity costs
Q6: Is the system noisy?
A: Traditional conveyors are quite noisy and likewise have a negative impact on the working environment. On the contrary, we use
direct-drive motors, which are quieter, as opposed to those clunky chains and gears.
